# @title Install and import feedback gadget

!pip install --quiet vibecheck numpy==1.26.4 matplotlib==3.8.3 Pillow==10.2.0 torch torchvision==0.16 transformers==4.38.1 ipywidgets==8.1.2 gradio==4.19.2 trdg scikit-learn==1.4.1.post1 networkx==3.2.1 pickleshare seaborn tabulate

from vibecheck import DatatopsContentReviewContainer
def content_review(notebook_section: str):
    return DatatopsContentReviewContainer(
        "",  # No text prompt
        notebook_section,
        {
            "url": "https://pmyvdlilci.execute-api.us-east-1.amazonaws.com/klab",
            "name": "neuromatch_neuroai",
            "user_key": "wb2cxze8",
        },
    ).render()

feedback_prefix = "W2D5_T1"

# @title Figure settings
# @markdown

logging.getLogger('matplotlib.font_manager').disabled = True

%matplotlib inline
%config InlineBackend.figure_format = 'retina' # perform high definition rendering for images and plots
plt.style.use("https://raw.githubusercontent.com/NeuromatchAcademy/course-content/main/nma.mplstyle")

# @title Helper functions

mse_loss = nn.BCELoss(size_average = False)

lam = 1e-4

from torch.autograd import Variable

def CAE_loss(W, x, recons_x, h, lam):
    """Compute the Contractive AutoEncoder Loss

    Evalutes the CAE loss, which is composed as the summation of a Mean
    Squared Error and the weighted l2-norm of the Jacobian of the hidden
    units with respect to the inputs.


    See reference below for an in-depth discussion:
      #1: http://wiseodd.github.io/techblog/2016/12/05/contractive-autoencoder

    Args:
        `W` (FloatTensor): (N_hidden x N), where N_hidden and N are the
          dimensions of the hidden units and input respectively.
        `x` (Variable): the input to the network, with dims (N_batch x N)
        recons_x (Variable): the reconstruction of the input, with dims
          N_batch x N.
        `h` (Variable): the hidden units of the network, with dims
          batch_size x N_hidden
        `lam` (float): the weight given to the jacobian regulariser term

    Returns:
        Variable: the (scalar) CAE loss
    """
    mse = mse_loss(recons_x, x)
    # Since: W is shape of N_hidden x N. So, we do not need to transpose it as
    # opposed to #1
    dh = h * (1 - h) # Hadamard product produces size N_batch x N_hidden
    # Sum through the input dimension to improve efficiency, as suggested in #1
    w_sum = torch.sum(Variable(W)**2, dim=1)
    # unsqueeze to avoid issues with torch.mv
    w_sum = w_sum.unsqueeze(1) # shape N_hidden x 1
    contractive_loss = torch.sum(torch.mm(dh**2, w_sum), 0)
    return mse + contractive_loss.mul_(lam)

class FirstOrderNetwork(nn.Module):
    def __init__(self, hidden_units, data_factor, use_gelu):
        """
        Initializes the FirstOrderNetwork with specific configurations.

        Parameters:
        - hidden_units (int): The number of units in the hidden layer.
        - data_factor (int): Factor to scale the amount of data processed.
                             A factor of 1 indicates the default data amount,
                             while 10 indicates 10 times the default amount.
        - use_gelu (bool): Flag to use GELU (True) or ReLU (False) as the activation function.
        """
        super(FirstOrderNetwork, self).__init__()

        # Define the encoder, hidden, and decoder layers with specified units

        self.fc1 = nn.Linear(100, hidden_units, bias = False) # Encoder
        self.hidden= nn.Linear(hidden_units, hidden_units, bias = False) # Hidden
        self.fc2 = nn.Linear(hidden_units, 100, bias = False) # Decoder

        self.relu = nn.ReLU()
        self.sigmoid = nn.Sigmoid()


        # Dropout layer to prevent overfitting
        self.dropout = nn.Dropout(0.1)

        # Set the data factor
        self.data_factor = data_factor

        # Other activation functions for various purposes
        self.softmax = nn.Softmax()

        # Initialize network weights
        self.initialize_weights()

    def initialize_weights(self):
        """Initializes weights of the encoder, hidden, and decoder layers uniformly."""
        init.uniform_(self.fc1.weight, -1.0, 1.0)
        init.uniform_(self.fc2.weight, -1.0, 1.0)
        init.uniform_(self.hidden.weight, -1.0, 1.0)

    def encoder(self, x):
      h1 = self.dropout(self.relu(self.fc1(x.view(-1, 100))))
      return h1

    def decoder(self,z):
      #h2 = self.relu(self.hidden(z))
      h2 = self.sigmoid(self.fc2(z))
      return h2


    def forward(self, x):
      """
      Defines the forward pass through the network.

      Parameters:
      - x (Tensor): The input tensor to the network.

      Returns:
      - Tensor: The output of the network after passing through the layers and activations.
      """
      h1 = self.encoder(x)
      h2 = self.decoder(h1)

      return h1 , h2

def initialize_global():
    global Input_Size_1, Hidden_Size_1, Output_Size_1, Input_Size_2
    global num_units, patterns_number
    global learning_rate_2, momentum, temperature , Threshold
    global First_set, Second_set, Third_set
    global First_set_targets, Second_set_targets, Third_set_targets
    global epoch_list, epoch_1_order, epoch_2_order, patterns_matrix1
    global testing_graph_names

    global optimizer ,n_epochs , learning_rate_1
    learning_rate_1 = 0.5
    n_epochs = 100
    optimizer="ADAMAX"

    # Network sizes
    Input_Size_1 = 100
    Hidden_Size_1 = 60
    Output_Size_1 = 100
    Input_Size_2 = 100

    # Patterns
    num_units = 100
    patterns_number = 200

    # Pre-training and hyperparameters
    learning_rate_2 = 0.1
    momentum = 0.9
    temperature = 1.0
    Threshold=0.5

    # Testing
    First_set = []
    Second_set = []
    Third_set = []
    First_set_targets = []
    Second_set_targets = []
    Third_set_targets = []

    # Graphic of pretraining
    epoch_list = list(range(1, n_epochs + 1))
    epoch_1_order = np.zeros(n_epochs)
    epoch_2_order = np.zeros(n_epochs)
    patterns_matrix1 =  torch.zeros((n_epochs, patterns_number), device=device)  # Initialize patterns_matrix as a PyTorch tensor on the GPU



def compute_metrics(TP, TN, FP, FN):
    """Compute precision, recall, F1 score, and accuracy."""
    precision = round(TP / (TP + FP), 2) if (TP + FP) > 0 else 0
    recall = round(TP / (TP + FN), 2) if (TP + FN) > 0 else 0
    f1_score = round(2 * (precision * recall) / (precision + recall), 2) if (precision + recall) > 0 else 0
    accuracy = round((TP + TN) / (TP + TN + FP + FN), 2) if (TP + TN + FP + FN) > 0 else 0
    return precision, recall, f1_score, accuracy

# define the architecture, optimizers, loss functions, and schedulers for pre training
def prepare_pre_training(hidden,factor,gelu,stepsize, gam):

  first_order_network = FirstOrderNetwork(hidden, factor, gelu).to(device)
  second_order_network = SecondOrderNetwork(gelu).to(device)

  criterion_1 = CAE_loss
  criterion_2 = nn.BCELoss(size_average = False)


  if optimizer == "ADAM":
    optimizer_1 = optim.Adam(first_order_network.parameters(), lr=learning_rate_1)
    optimizer_2 = optim.Adam(second_order_network.parameters(), lr=learning_rate_2)

  elif optimizer == "SGD":
    optimizer_1 = optim.SGD(first_order_network.parameters(), lr=learning_rate_1)
    optimizer_2 = optim.SGD(second_order_network.parameters(), lr=learning_rate_2)

  elif optimizer == "SWATS":
    optimizer_1 = optim2.SWATS(first_order_network.parameters(), lr=learning_rate_1)
    optimizer_2 = optim2.SWATS(second_order_network.parameters(), lr=learning_rate_2)

  elif optimizer == "ADAMW":
    optimizer_1 = optim.AdamW(first_order_network.parameters(), lr=learning_rate_1)
    optimizer_2 = optim.AdamW(second_order_network.parameters(), lr=learning_rate_2)

  elif optimizer == "RMS":
    optimizer_1 = optim.RMSprop(first_order_network.parameters(), lr=learning_rate_1)
    optimizer_2 = optim.RMSprop(second_order_network.parameters(), lr=learning_rate_2)

  elif optimizer == "ADAMAX":
    optimizer_1 = optim.Adamax(first_order_network.parameters(), lr=learning_rate_1)
    optimizer_2 = optim.Adamax(second_order_network.parameters(), lr=learning_rate_2)

  # Learning rate schedulers
  scheduler_1 = StepLR(optimizer_1, step_size=stepsize, gamma=gam)
  scheduler_2 = StepLR(optimizer_2, step_size=stepsize, gamma=gam)

  return first_order_network, second_order_network, criterion_1 , criterion_2, optimizer_1, optimizer_2, scheduler_1, scheduler_2

def title(string):
    # Enable XKCD plot styling
    with plt.xkcd():
        # Create a figure and an axes.
        fig, ax = plt.subplots()

        # Create a rectangle patch with specified dimensions and styles
        rectangle = patches.Rectangle((0.05, 0.1), 0.9, 0.4, linewidth=1, edgecolor='r', facecolor='blue', alpha=0.5)
        ax.add_patch(rectangle)

        # Place text inside the rectangle, centered
        plt.text(0.5, 0.3, string, horizontalalignment='center', verticalalignment='center', fontsize=26, color='white')

        # Set plot limits
        ax.set_xlim(0, 1)
        ax.set_ylim(0, 1)

        # Disable axis display
        ax.axis('off')

        # Display the plot
        plt.show()

        # Close the figure to free up memory
        plt.close(fig)

# Function to configure the training environment and load the models
def get_test_patterns(factor):
    """
    Configures the training environment by saving the state of the given models and loading them back.
    Initializes testing patterns for evaluation.

    Returns:
    - Tuple of testing patterns, number of samples in the testing patterns
    """
    # Generating testing patterns for three different sets
    first_set, first_set_targets = create_patterns(0,factor)
    second_set, second_set_targets = create_patterns(1,factor)
    third_set, third_set_targets = create_patterns(2,factor)

    # Aggregate testing patterns and their targets for ease of access
    testing_patterns = [[first_set, first_set_targets], [second_set, second_set_targets], [third_set, third_set_targets]]

    # Determine the number of samples from the first set (assumed consistent across all sets)
    n_samples = len(testing_patterns[0][0])

    return testing_patterns, n_samples

# Function to test the model using the configured testing patterns
def plot_input_output(input_data, output_data, index):
    fig, axes = plt.subplots(1, 2, figsize=(10, 6))

    # Plot input data
    im1 = axes[0].imshow(input_data.cpu().numpy(), aspect='auto', cmap='viridis')
    axes[0].set_title('Input')
    fig.colorbar(im1, ax=axes[0])

    # Plot output data
    im2 = axes[1].imshow(output_data.cpu().numpy(), aspect='auto', cmap='viridis')
    axes[1].set_title('Output')
    fig.colorbar(im2, ax=axes[1])

    plt.suptitle(f'Testing Pattern {index+1}')
    plt.show()

# Function to test the model using the configured testing patterns
# Function to test the model using the configured testing patterns
def testing(testing_patterns, n_samples, loaded_model, loaded_model_2,factor):

    def generate_chance_level(shape):
      chance_level = np.random.rand(*shape).tolist()
      return chance_level

    results_for_plotting = []
    max_values_output_first_order = []
    max_indices_output_first_order = []
    max_values_patterns_tensor = []
    max_indices_patterns_tensor = []
    f1_scores_wager = []

    mse_losses_indices = []
    mse_losses_values = []
    discrimination_performances = []



    # Iterate through each set of testing patterns and targets
    for i in range(len(testing_patterns)):
        with torch.no_grad():  # Ensure no gradients are computed during testing

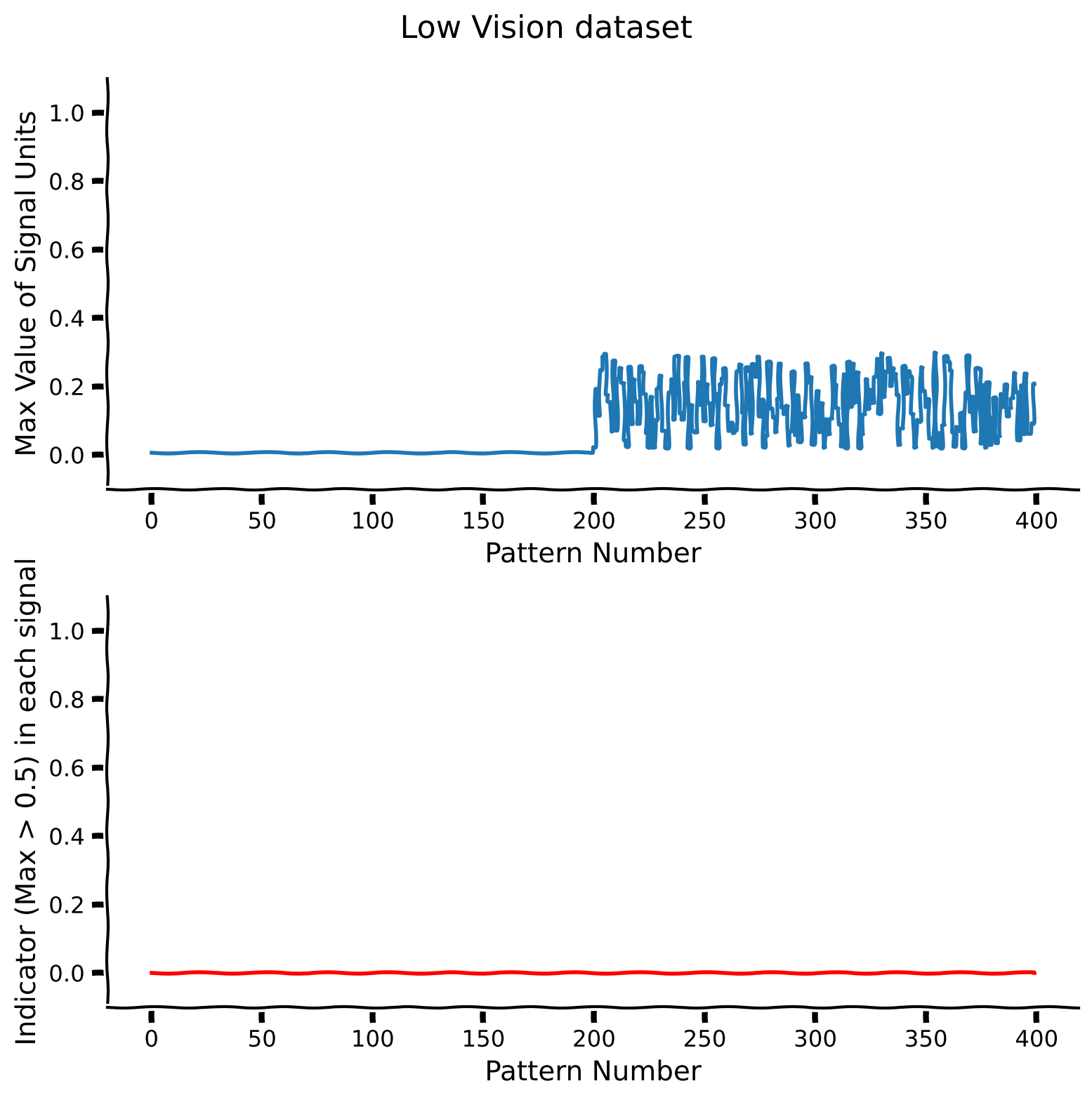

            #For low vision the stimulus threshold was set to 0.3 as can seen in the generate_patters function
            threshold=0.5
            if i==2:
                threshold=0.15

            # Obtain output from the first order model
            input_data = testing_patterns[i][0]
            hidden_representation,  output_first_order = loaded_model(input_data)
            output_second_order = loaded_model_2(input_data, output_first_order)

            delta=100*factor

            print("driscriminator")
            print((output_first_order[delta:].argmax(dim=1) == input_data[delta:].argmax(dim=1)).to(float).mean())
            discrimination_performance = round((output_first_order[delta:].argmax(dim=1) == input_data[delta:].argmax(dim=1)).to(float).mean().item(), 2)
            discrimination_performances.append(discrimination_performance)


            chance_level = torch.Tensor( generate_chance_level((200*factor,100))).to(device)
            discrimination_random= round((chance_level[delta:].argmax(dim=1) == input_data[delta:].argmax(dim=1)).to(float).mean().item(), 2)
            print("chance level" , discrimination_random)



            #count all patterns in the dataset
            wagers = output_second_order[delta:].cpu()

            _, targets_2 = torch.max(testing_patterns[i][1], 1)
            targets_2 = targets_2[delta:].cpu()

            # Convert targets to binary classification for wagering scenario
            targets_2 = (targets_2 > 0).int()

            # Convert tensors to NumPy arrays for metric calculations
            predicted_np = wagers.numpy().flatten()
            targets_2_np = targets_2.numpy()

            #print("number of targets," , len(targets_2_np))

            print(predicted_np)
            print(targets_2_np)

            # Calculate True Positives, True Negatives, False Positives, and False Negatives
            TP = np.sum((predicted_np >  threshold) & (targets_2_np > threshold))
            TN = np.sum((predicted_np <  threshold ) & (targets_2_np < threshold))
            FP = np.sum((predicted_np >  threshold) & (targets_2_np <  threshold))
            FN = np.sum((predicted_np <  threshold) & (targets_2_np >  threshold))

            # Compute precision, recall, F1 score, and accuracy for both high and low wager scenarios
            precision_h, recall_h, f1_score_h, accuracy_h = compute_metrics(TP, TN, FP, FN)

            f1_scores_wager.append(f1_score_h)

            # Collect results for plotting
            results_for_plotting.append({
                "counts": [[TP, FP, TP + FP]],
                "metrics": [[precision_h, recall_h, f1_score_h, accuracy_h]],
                "title_results": f"Results Table - Set {i+1}",
                "title_metrics": f"Metrics Table - Set {i+1}"
            })

            # Plot input and output of the first-order network
            plot_input_output(input_data, output_first_order, i)

            max_vals_out, max_inds_out = torch.max(output_first_order[100:], dim=1)
            max_inds_out[max_vals_out == 0] = 0
            max_values_output_first_order.append(max_vals_out.tolist())
            max_indices_output_first_order.append(max_inds_out.tolist())

            max_vals_pat, max_inds_pat = torch.max(input_data[100:], dim=1)
            max_inds_pat[max_vals_pat == 0] = 0
            max_values_patterns_tensor.append(max_vals_pat.tolist())
            max_indices_patterns_tensor.append(max_inds_pat.tolist())

            fig, axs = plt.subplots(1, 2, figsize=(15, 5))

            # Scatter plot of indices: patterns_tensor vs. output_first_order
            axs[0].scatter(max_indices_patterns_tensor[i], max_indices_output_first_order[i], alpha=0.5)
            axs[0].set_title(f'Stimuli location: Condition {i+1} - First Order Input vs. First Order Output')
            axs[0].set_xlabel('First Order Input Indices')
            axs[0].set_ylabel('First Order Output Indices')

            # Add quadratic fit to scatter plot
            x_indices = max_indices_patterns_tensor[i]
            y_indices = max_indices_output_first_order[i]
            y_pred_indices = perform_quadratic_regression(x_indices, y_indices)
            axs[0].plot(x_indices, y_pred_indices, color='skyblue')


            # Calculate MSE loss for indices
            mse_loss_indices = np.mean((np.array(x_indices) - np.array(y_indices)) ** 2)
            mse_losses_indices.append(mse_loss_indices)

            # Scatter plot of values: patterns_tensor vs. output_first_order
            axs[1].scatter(max_values_patterns_tensor[i], max_values_output_first_order[i], alpha=0.5)
            axs[1].set_title(f'Stimuli Values: Condition {i+1} - First Order Input vs. First Order Output')
            axs[1].set_xlabel('First Order Input Values')
            axs[1].set_ylabel('First Order Output Values')

            # Add quadratic fit to scatter plot
            x_values = max_values_patterns_tensor[i]
            y_values = max_values_output_first_order[i]
            y_pred_values = perform_quadratic_regression(x_values, y_values)
            axs[1].plot(x_values, y_pred_values, color='skyblue')

            # Calculate MSE loss for values
            mse_loss_values = np.mean((np.array(x_values) - np.array(y_values)) ** 2)
            mse_losses_values.append(mse_loss_values)

            plt.tight_layout()
            plt.show()

    return f1_scores_wager, mse_losses_indices , mse_losses_values, discrimination_performances, results_for_plotting

def generate_patterns(patterns_number, num_units, factor, condition = 0):
    """
    Generates patterns and targets for training the networks

    # patterns_number: Number of patterns to generate
    # num_units: Number of units in each pattern
    # pattern: 0: superthreshold, 1: subthreshold, 2: low vision
    # Returns lists of patterns, stimulus present/absent indicators, and second order targets
    """

    patterns_number= patterns_number*factor

    patterns = []  # Store generated patterns
    stim_present = []  # Indicators for when a stimulus is present in the pattern
    stim_absent = []  # Indicators for when no stimulus is present
    order_2_pr = []  # Second order network targets based on the presence or absence of stimulus

    if condition == 0:
        random_limit= 0.0
        baseline = 0
        multiplier = 1

    if condition == 1:
        random_limit= 0.02
        baseline = 0.0012
        multiplier = 1

    if condition == 2:
        random_limit= 0.02
        baseline = 0.0012
        multiplier = 0.3

    # Generate patterns, half noise and half potential stimuli
    for i in range(patterns_number):

        # First half: Noise patterns
        if i < patterns_number // 2:

            pattern = multiplier * np.random.uniform(0.0, random_limit, num_units) + baseline # Generate a noise pattern
            patterns.append(pattern)
            stim_present.append(np.zeros(num_units))  # Stimulus absent
            order_2_pr.append([0.0 , 1.0])  # No stimulus, low wager

        # Second half: Stimulus patterns
        else:
            stimulus_number = random.randint(0, num_units - 1) # Choose a unit for potential stimulus
            pattern = np.random.uniform(0.0, random_limit, num_units) + baseline
            pattern[stimulus_number] = np.random.uniform(0.0, 1.0) * multiplier   # Set stimulus intensity

            patterns.append(pattern)
            present = np.zeros(num_units)
            # Determine if stimulus is above discrimination threshold
            if pattern[stimulus_number] >= multiplier/2:
                order_2_pr.append([1.0 , 0.0])  # Stimulus detected, high wager
                present[stimulus_number] = 1.0
            else:
                order_2_pr.append([0.0 , 1.0])  # Stimulus not detected, low wager
                present[stimulus_number] = 0.0

            stim_present.append(present)


    patterns_tensor = torch.Tensor(patterns).to(device).requires_grad_(True)
    stim_present_tensor = torch.Tensor(stim_present).to(device).requires_grad_(True)
    stim_absent_tensor= torch.Tensor(stim_absent).to(device).requires_grad_(True)
    order_2_tensor = torch.Tensor(order_2_pr).to(device).requires_grad_(True)

    return patterns_tensor, stim_present_tensor, stim_absent_tensor, order_2_tensor

def create_patterns(stimulus,factor):
    """
    Generates neural network input patterns based on specified stimulus conditions.

    Parameters:
    - stimulus (int): Determines the type of patterns to generate.
                      Acceptable values:
                      - 0: Suprathreshold stimulus
                      - 1: Subthreshold stimulus
                      - 2: Low vision condition

    Returns:
    - torch.Tensor: Tensor of generated patterns.
    - torch.Tensor: Tensor of target values corresponding to the generated patterns.
    """

    # Generate initial patterns and target tensors for base condition.

    patterns_tensor, stim_present_tensor, _, _ = generate_patterns(patterns_number, num_units ,factor, stimulus)
    # Convert pattern tensors for processing on specified device (CPU/GPU).
    patterns = torch.Tensor(patterns_tensor).to(device)
    targets = torch.Tensor(stim_present_tensor).to(device)

    return patterns, targets

# @title Plotting functions
# @markdown

def plot_testing(results_seed, discrimination_seed, seeds, title):
    print(results_seed)
    print(discrimination_seed)

    Testing_graph_names = ["Suprathreshold stimulus", "Subthreshold stimulus", "Low Vision"]

    fig, ax = plt.subplots(figsize=(14, len(results_seed[0]) * 2 + 2))  # Adjusted for added header space
    ax.axis('off')
    ax.axis('tight')

    # Define column labels
    col_labels = ["Scenario", "F1 SCORE\n(2nd order network)", "RECALL\n(2nd order network)", "PRECISION\n(2nd order network)", "Discrimination Performance\n(1st order network)", "ACCURACY\n(2nd order network)"]

    # Initialize list to hold all rows of data including headers
    full_data = []

    # Calculate averages and standard deviations
    for i in range(len(results_seed[0])):
        metrics_list = [result[i]["metrics"][0] for result in results_seed]  # Collect metrics for each seed
        discrimination_list = [discrimination_seed[j][i] for j in range(seeds)]

        # Calculate averages and standard deviations for metrics
        avg_metrics = np.mean(metrics_list, axis=0).tolist()
        std_metrics = np.std(metrics_list, axis=0).tolist()

        # Calculate average and standard deviation for discrimination performance
        avg_discrimination = np.mean(discrimination_list)
        std_discrimination = np.std(discrimination_list)

        # Format the row with averages and standard deviations
        row = [
            Testing_graph_names[i],
            f"{avg_metrics[2]:.2f} ± {std_metrics[2]:.2f}",  # F1 SCORE
            f"{avg_metrics[1]:.2f} ± {std_metrics[1]:.2f}",  # RECALL
            f"{avg_metrics[0]:.2f} ± {std_metrics[0]:.2f}",  # PRECISION
            f"{avg_discrimination:.2f} ± {std_discrimination:.2f}",  # Discrimination Performance
            f"{avg_metrics[3]:.2f} ± {std_metrics[3]:.2f}"  # ACCURACY
        ]
        full_data.append(row)

    # Extract metric values for color scaling (excluding the first and last columns which are text)
    metric_values = np.array([[float(x.split(" ± ")[0]) for x in row[1:]] for row in full_data])  # Convert to float for color scaling
    max_value = np.max(metric_values)
    colors = metric_values / max_value  # Normalize for color mapping

    # Prepare colors for all cells, defaulting to white for non-metric cells
    cell_colors = [["white"] * len(col_labels) for _ in range(len(full_data))]
    for i, row in enumerate(colors):
        cell_colors[i][1] = plt.cm.RdYlGn(row[0])
        cell_colors[i][2] = plt.cm.RdYlGn(row[1])
        cell_colors[i][3] = plt.cm.RdYlGn(row[2])
        cell_colors[i][5] = plt.cm.RdYlGn(row[3])  # Adding color for accuracy

    # Adding color for discrimination performance
    discrimination_colors = colors[:, 3]
    for i, dp_color in enumerate(discrimination_colors):
        cell_colors[i][4] = plt.cm.RdYlGn(dp_color)

    # Create the main table with cell colors
    table = ax.table(cellText=full_data, colLabels=col_labels, loc='center', cellLoc='center', cellColours=cell_colors)
    table.auto_set_font_size(False)
    table.set_fontsize(10)
    table.scale(1.5, 1.5)

    # Set the height of the header row to be double that of the other rows
    for j, col_label in enumerate(col_labels):
        cell = table[(0, j)]
        cell.set_height(cell.get_height() * 2)

    # Add chance level table
    chance_level_data = [["Chance Level\nDiscrimination(1st)", "Chance Level\nAccuracy(2nd)"],
                         ["0.010", "0.50"]]

    chance_table = ax.table(cellText=chance_level_data, bbox=[1.0, 0.8, 0.3, 0.1], cellLoc='center', colWidths=[0.1, 0.1])
    chance_table.auto_set_font_size(False)
    chance_table.set_fontsize(10)
    chance_table.scale(1.2, 1.2)

    # Set the height of the header row to be double that of the other rows in the chance level table
    for j in range(len(chance_level_data[0])):
        cell = chance_table[(0, j)]
        cell.set_height(cell.get_height() * 2)

    plt.title(title, pad=20, fontsize=16)
    plt.show()
    plt.close(fig)

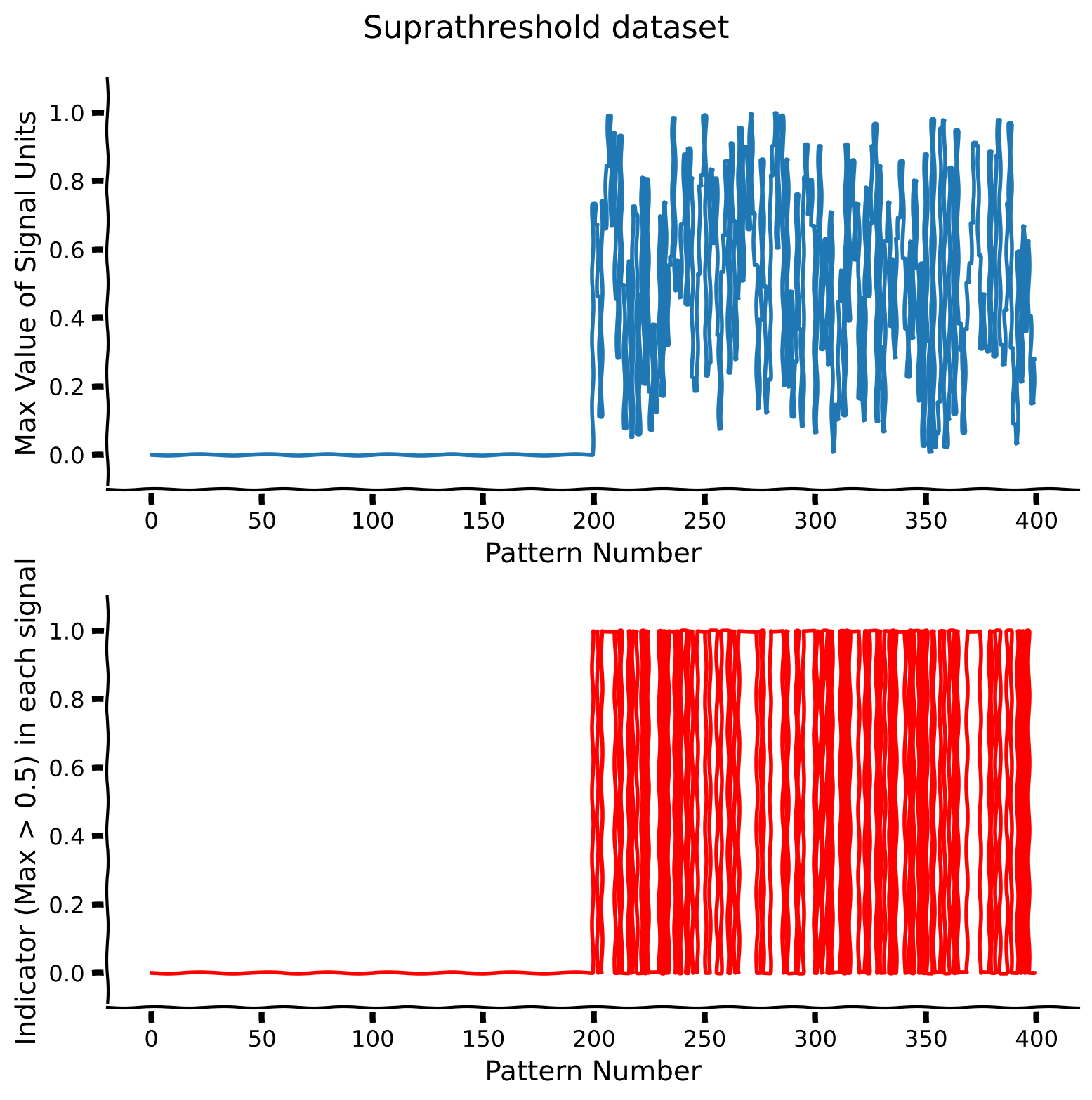

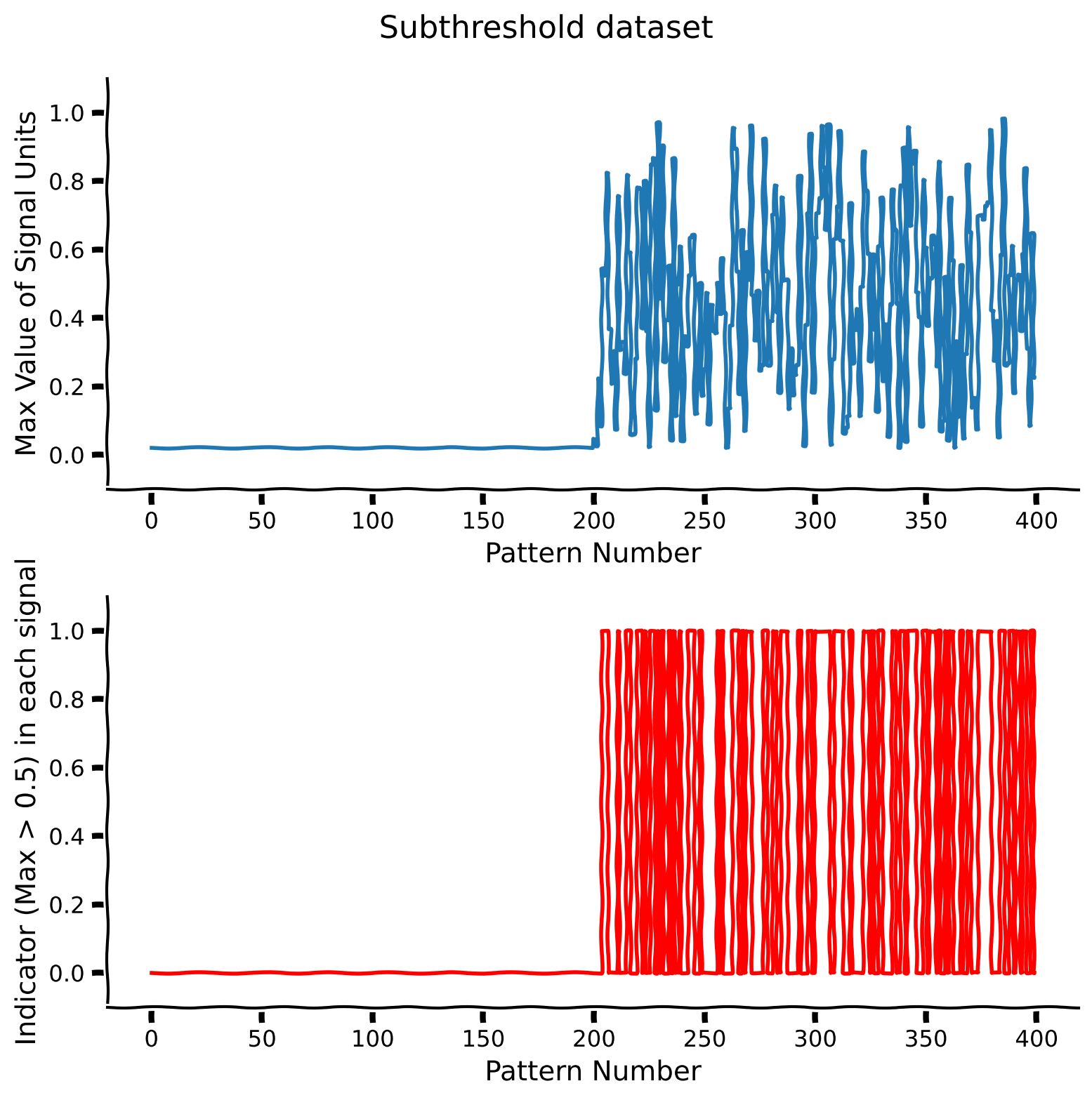

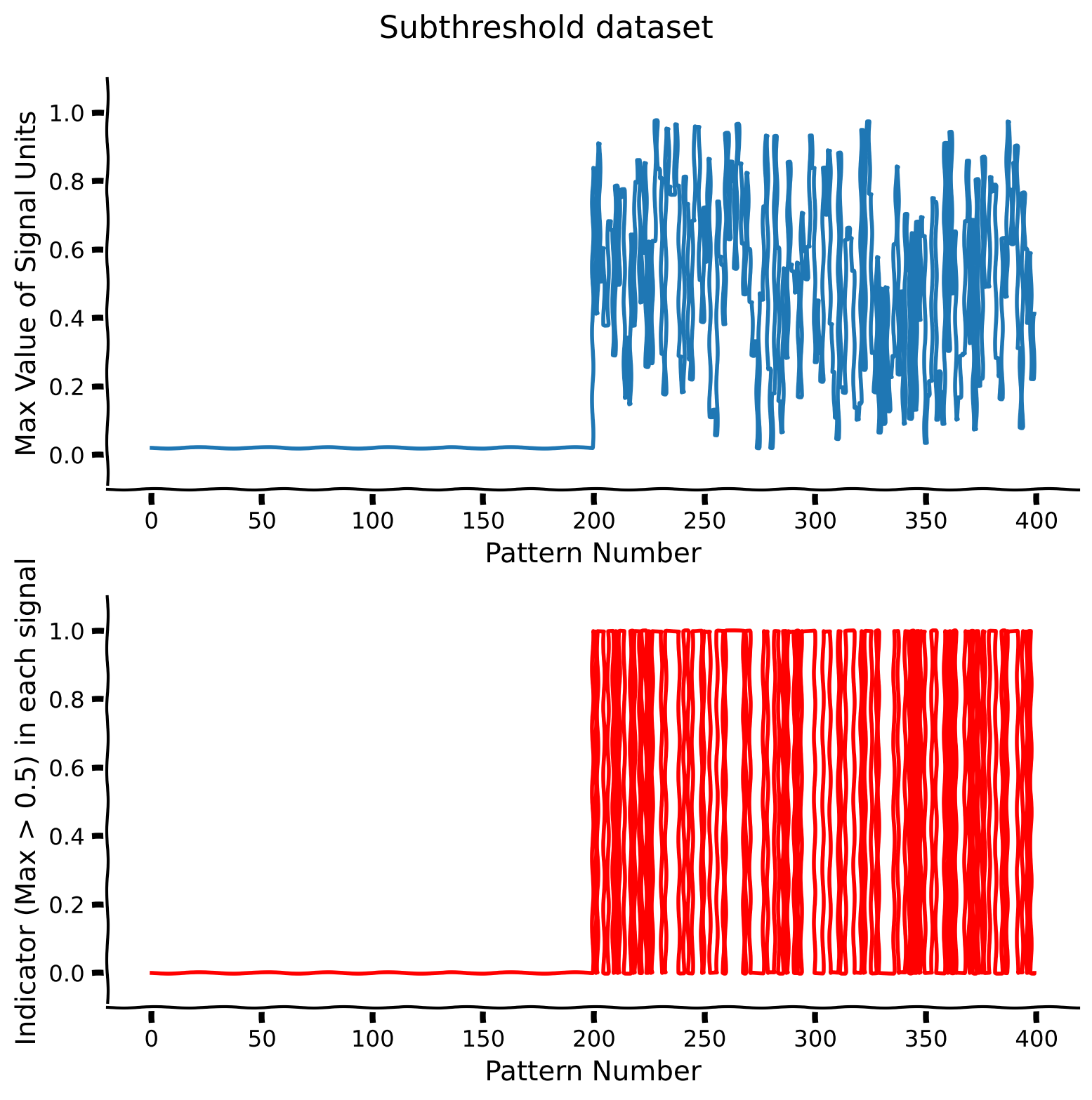

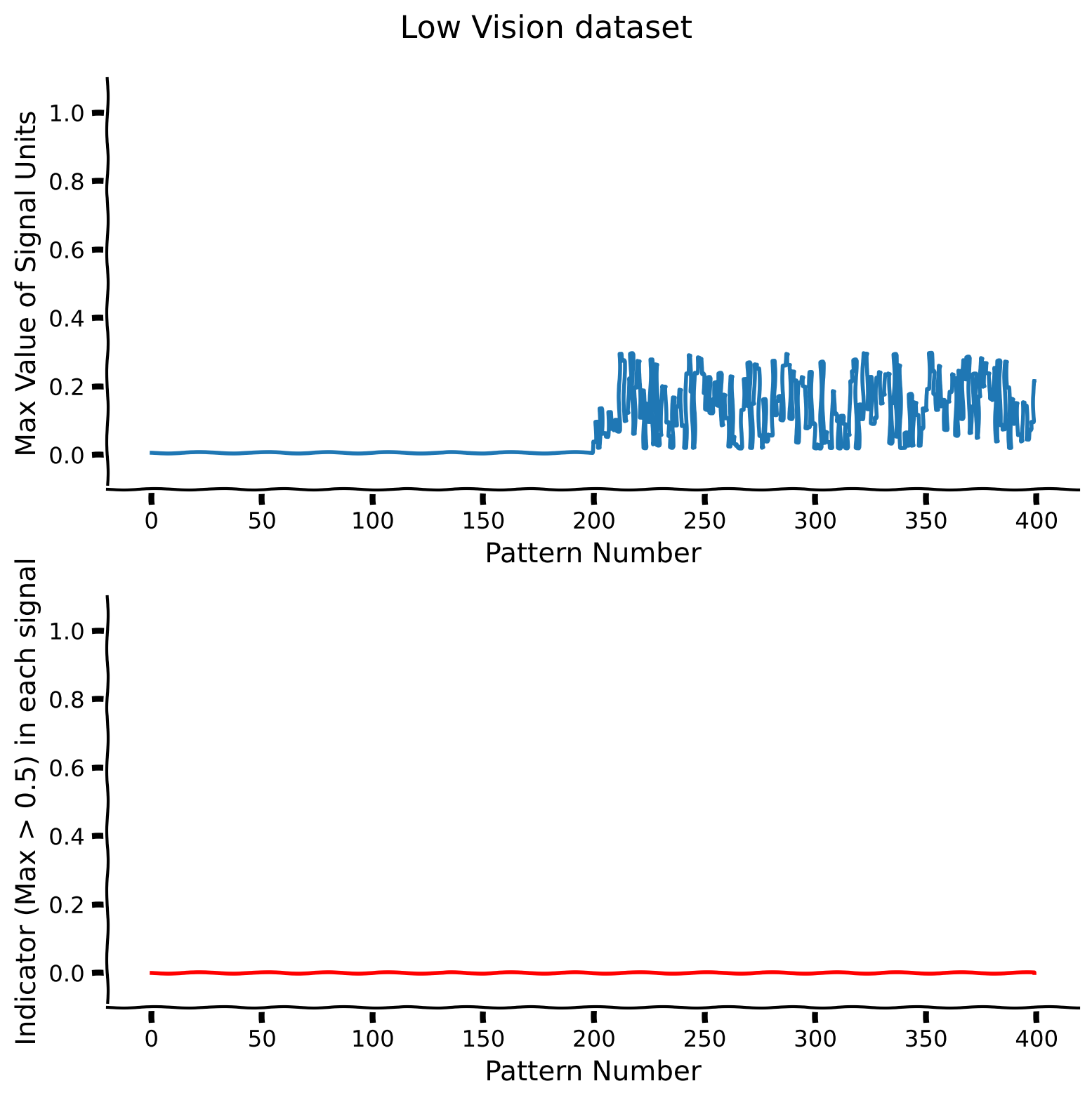

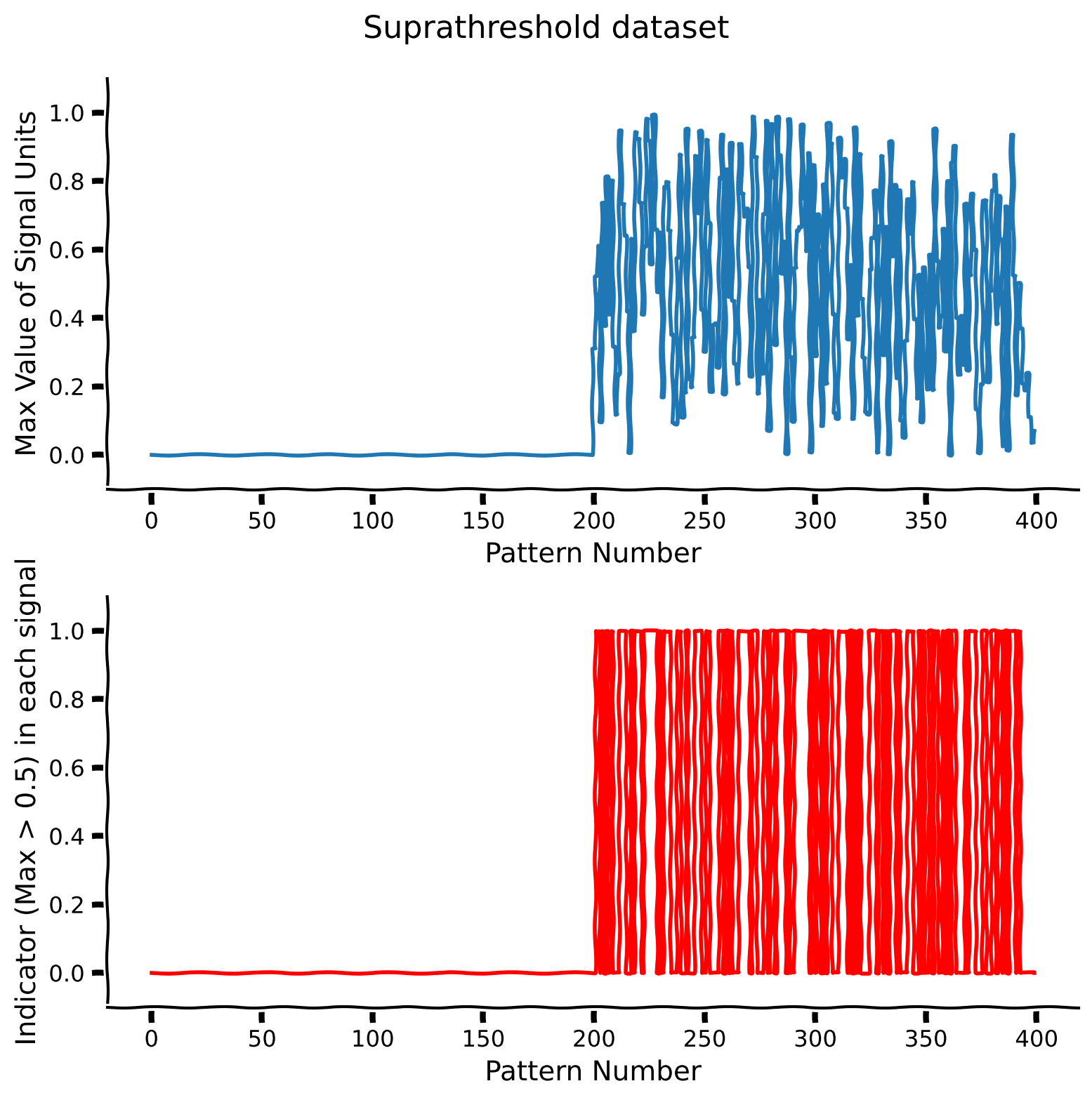

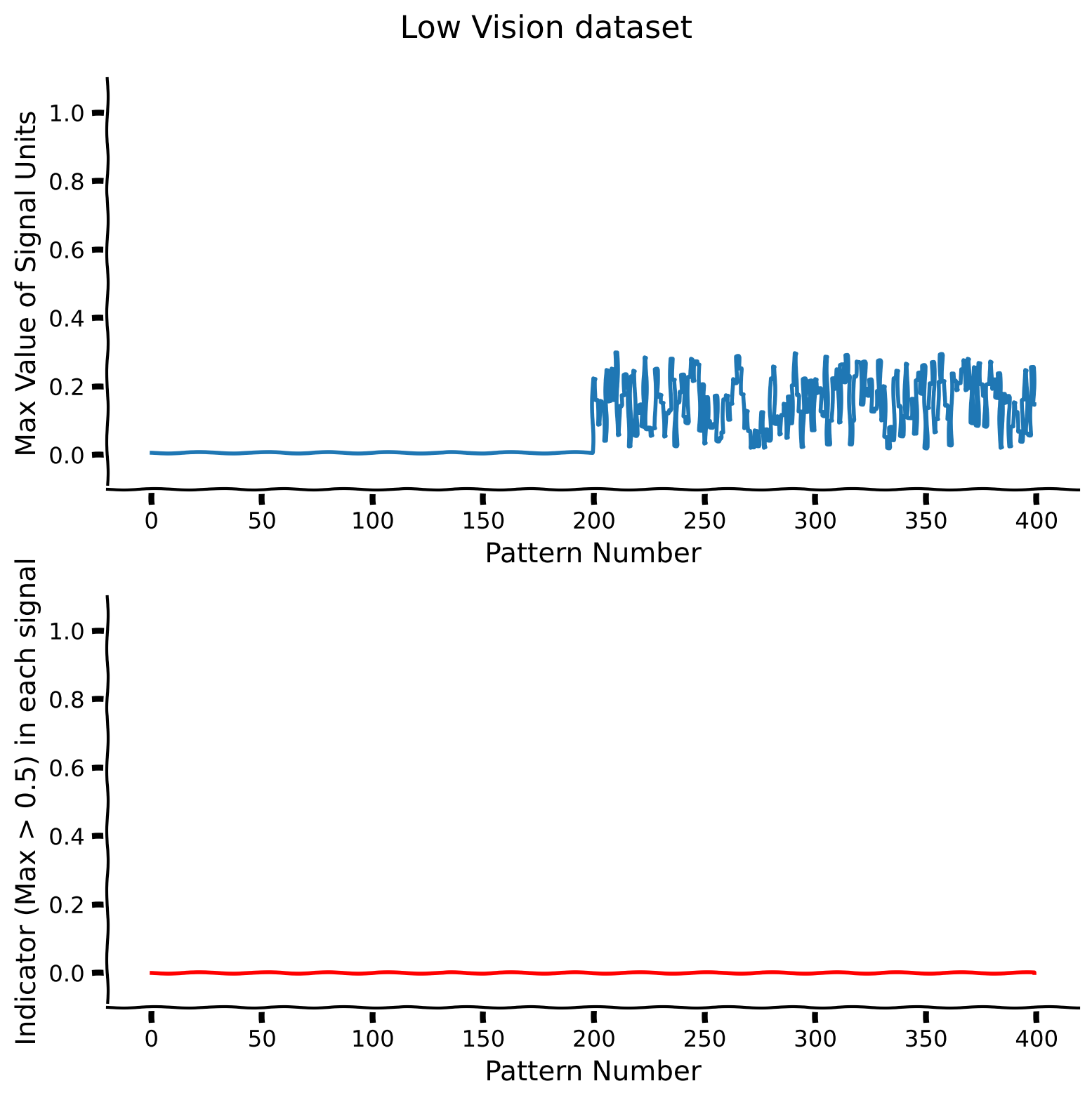

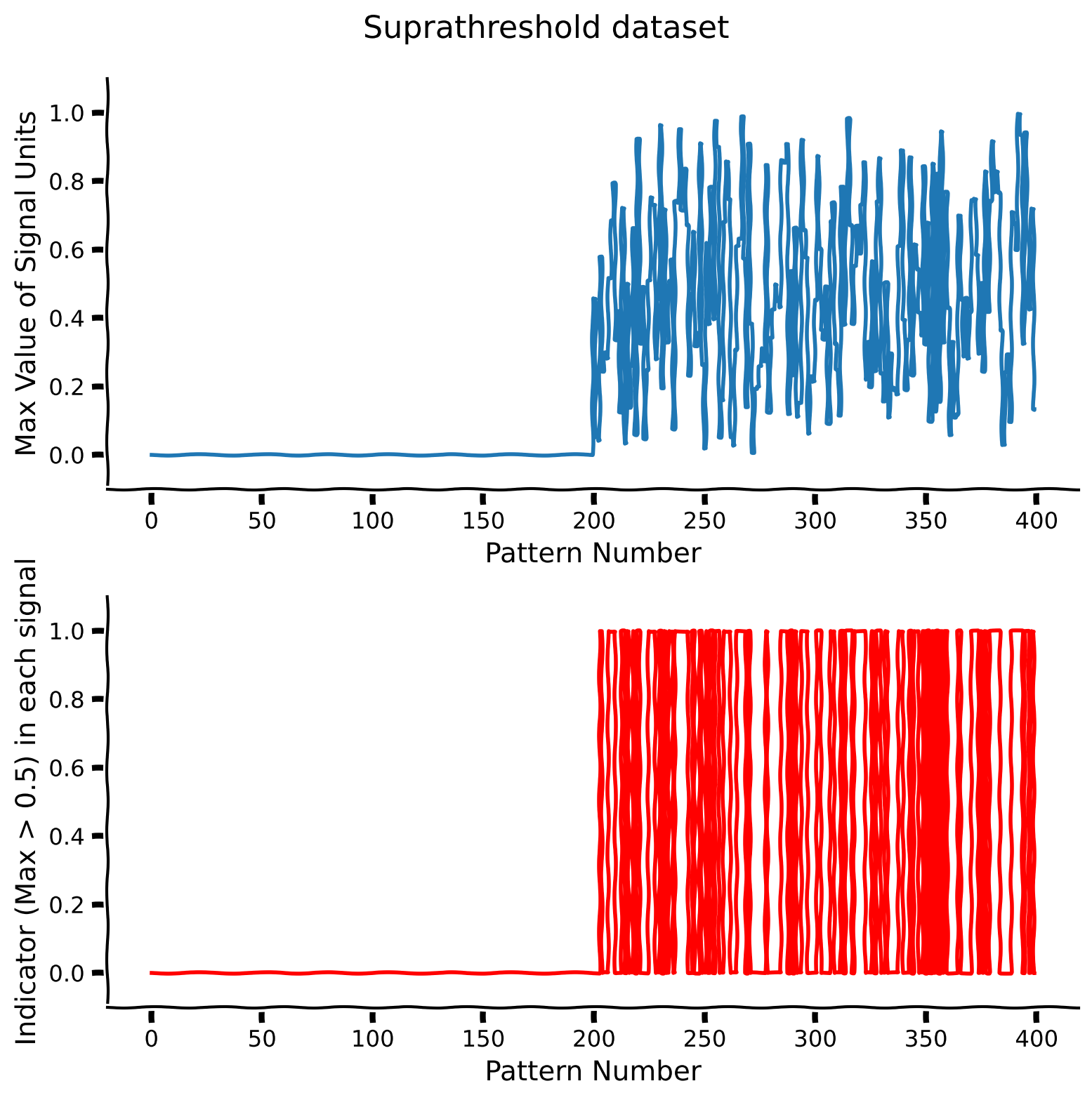

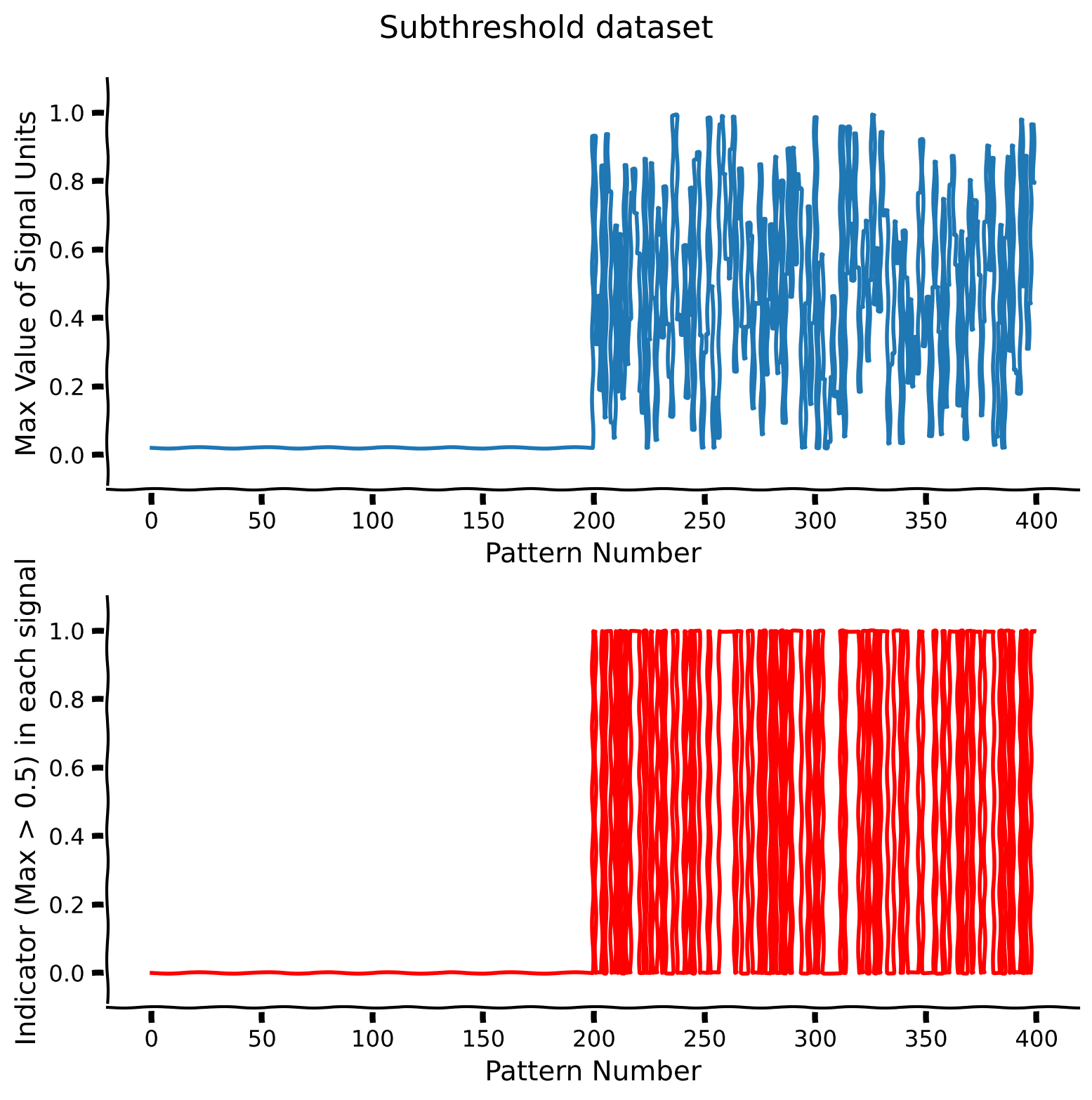

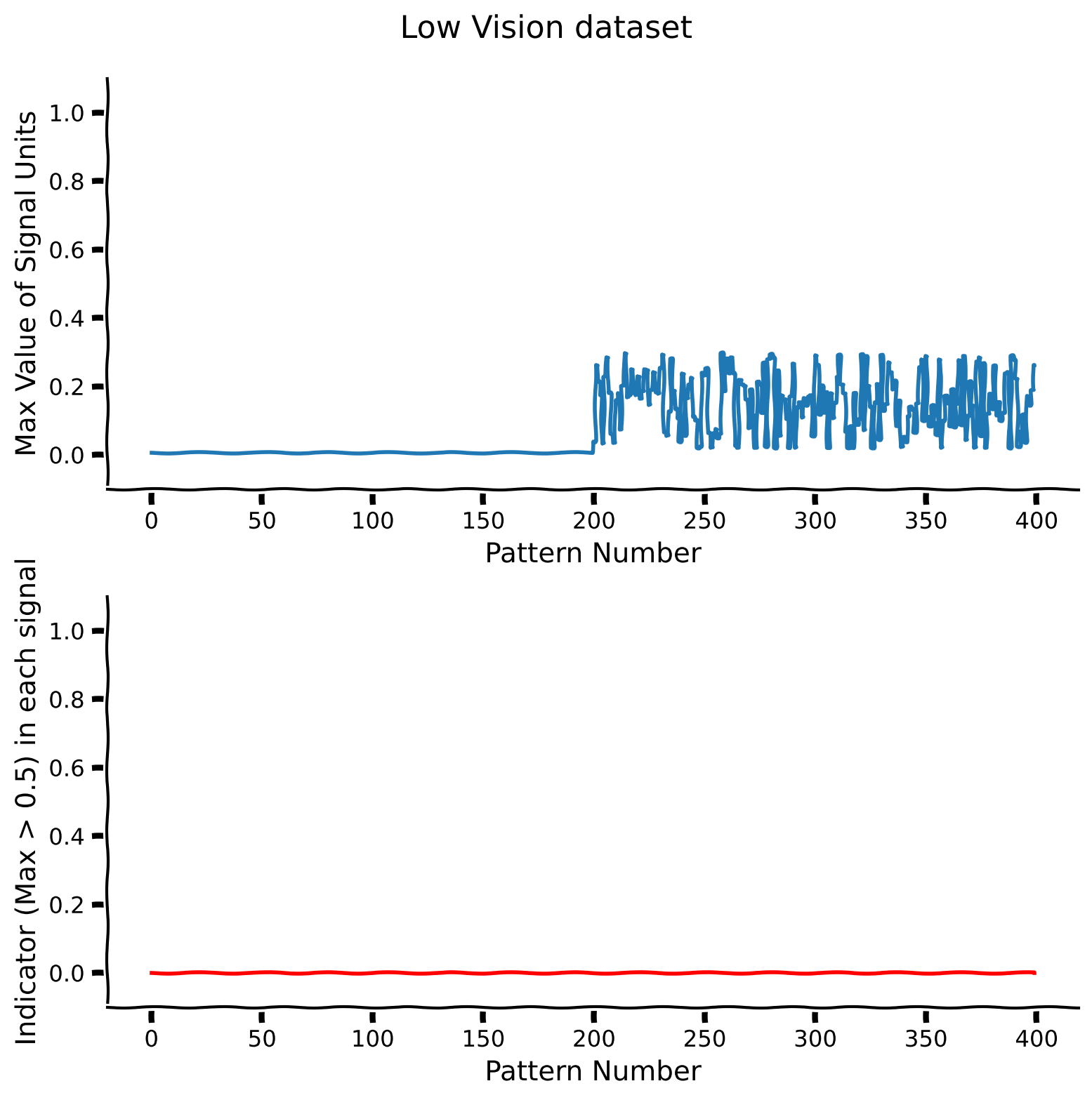

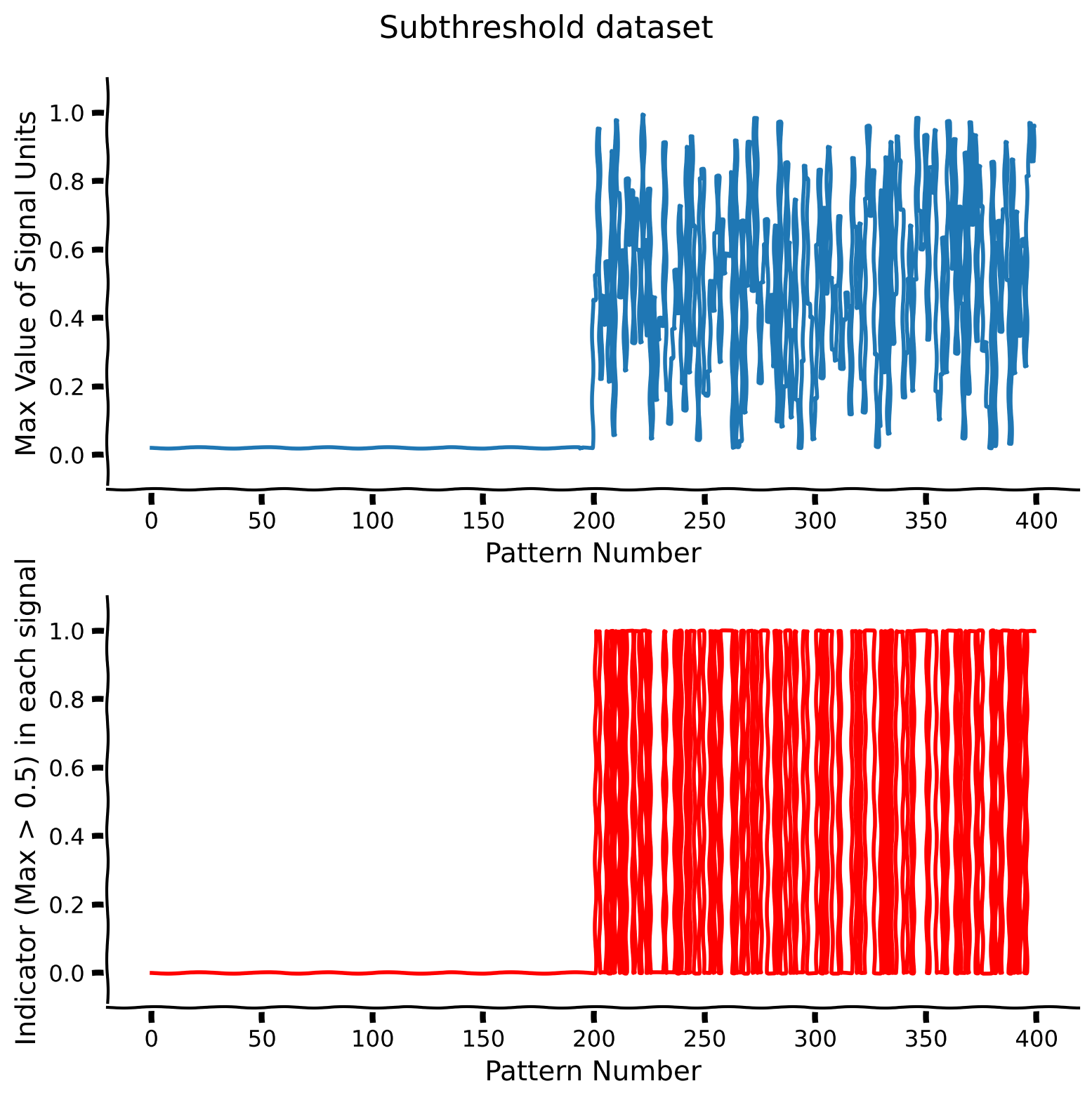

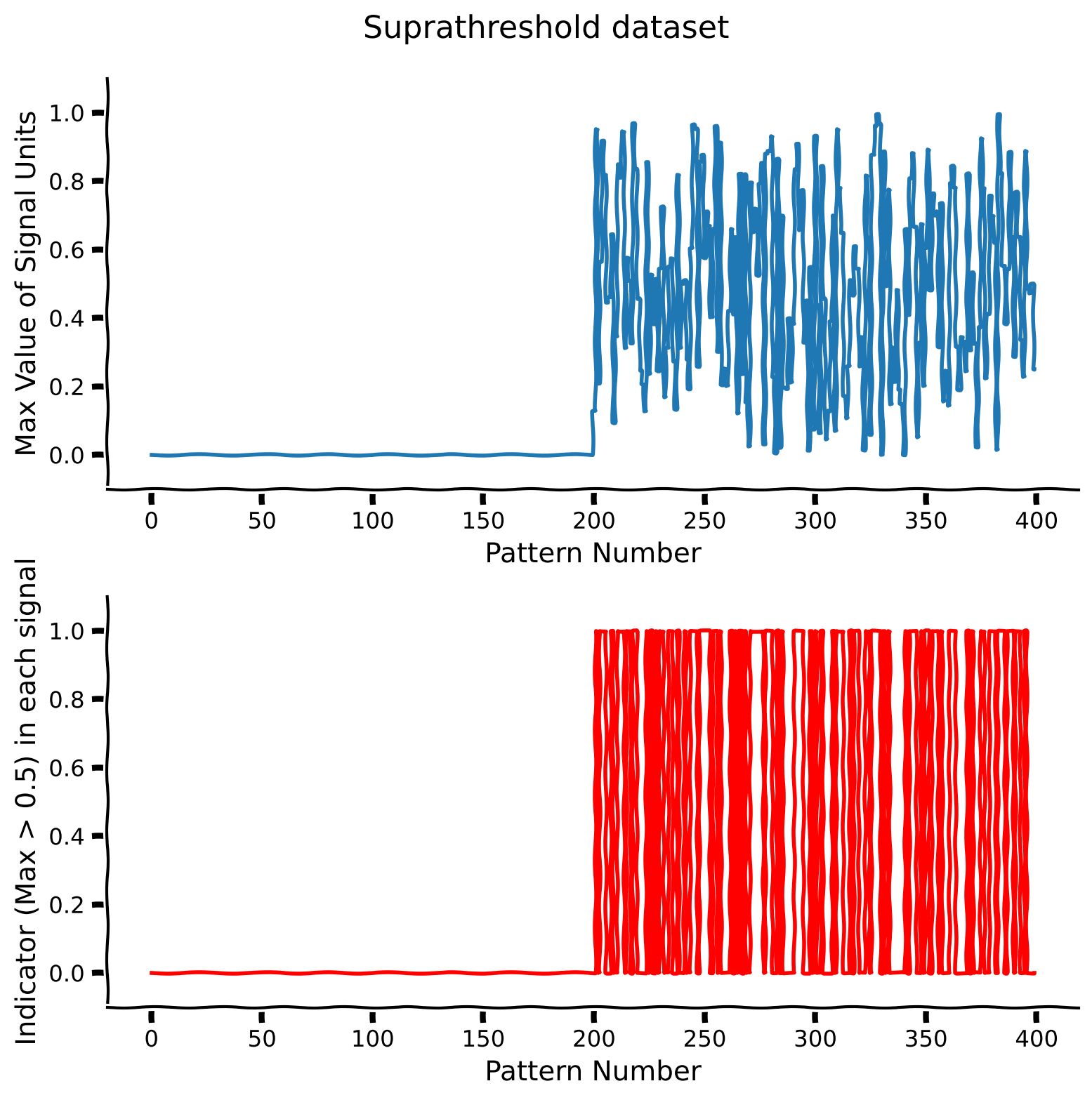

def plot_signal_max_and_indicator(patterns_tensor, plot_title="Training Signals"):
    """
    Plots the maximum values of signal units and a binary indicator for max values greater than 0.5.

    Parameters:
    - patterns_tensor: A tensor containing signals, where each signal is expected to have multiple units.
    """
    with plt.xkcd():

        # Calculate the maximum value of units for each signal within the patterns tensor
        max_values_of_units = patterns_tensor.max(dim=1).values.cpu().numpy()  # Ensure it's on CPU and in NumPy format for plotting

        # Determine the binary indicators based on the max value being greater than 0.5
        binary_indicators = (max_values_of_units > 0.5).astype(int)

        # Create a figure with 2 subplots (2 rows, 1 column)
        fig, axs = plt.subplots(2, 1, figsize=(8, 8))

        fig.suptitle(plot_title, fontsize=16)  # Set the overall title for the plot

        # First subplot for the maximum values of each signal
        axs[0].plot(range(patterns_tensor.size(0)), max_values_of_units, drawstyle='steps-mid')
        axs[0].set_xlabel('Pattern Number')
        axs[0].set_ylabel('Max Value of Signal Units')
        axs[0].set_ylim(-0.1, 1.1)  # Adjust y-axis limits for clarity
        axs[0].grid(True)

        # Second subplot for the binary indicators
        axs[1].plot(range(patterns_tensor.size(0)), binary_indicators, drawstyle='steps-mid', color='red')
        axs[1].set_xlabel('Pattern Number')
        axs[1].set_ylabel('Indicator (Max > 0.5) in each signal')
        axs[1].set_ylim(-0.1, 1.1)  # Adjust y-axis limits for clarity
        axs[1].grid(True)

        plt.tight_layout()
        plt.show()


def perform_quadratic_regression(epoch_list, values):
    # Perform quadratic regression
    coeffs = np.polyfit(epoch_list, values, 2)  # Coefficients of the polynomial
    y_pred = np.polyval(coeffs, epoch_list)        # Evaluate the polynomial at the given x values
    return y_pred


def pre_train_plots(epoch_1_order, epoch_2_order, title, max_values_indices):
    """
    Plots the training progress with regression lines and scatter plots of indices and values of max elements.

    Parameters:
    - epoch_list (list): List of epoch numbers.
    - epoch_1_order (list): Loss values for the first-order network over epochs.
    - epoch_2_order (list): Loss values for the second-order network over epochs.
    - title (str): Title for the plots.
    - max_values_indices (tuple): Tuple containing lists of max values and indices for both tensors.
    """
    (max_values_output_first_order,
     max_indices_output_first_order,
     max_values_patterns_tensor,
     max_indices_patterns_tensor) = max_values_indices

    # Perform quadratic regression for the loss plots
    epoch_list = list(range(len(epoch_1_order)))
    y_pred1 = perform_quadratic_regression(epoch_list, epoch_1_order)
    y_pred2 = perform_quadratic_regression(epoch_list, epoch_2_order)

    # Set up the plot with 2 rows and 2 columns
    fig, axs = plt.subplots(2, 2, figsize=(15, 10))

    # First graph for 1st Order Network
    axs[0, 0].plot(epoch_list, epoch_1_order, linestyle='--', marker='o', color='g')
    axs[0, 0].plot(epoch_list, y_pred1, linestyle='-', color='r', label='Quadratic Fit')
    axs[0, 0].legend(['1st Order Network', 'Quadratic Fit'])
    axs[0, 0].set_title('1st Order Network Loss')
    axs[0, 0].set_xlabel('Epochs - Pretraining Phase')
    axs[0, 0].set_ylabel('Loss')

    # Second graph for 2nd Order Network
    axs[0, 1].plot(epoch_list, epoch_2_order, linestyle='--', marker='o', color='b')
    axs[0, 1].plot(epoch_list, y_pred2, linestyle='-', color='r', label='Quadratic Fit')
    axs[0, 1].legend(['2nd Order Network', 'Quadratic Fit'])
    axs[0, 1].set_title('2nd Order Network Loss')
    axs[0, 1].set_xlabel('Epochs - Pretraining Phase')
    axs[0, 1].set_ylabel('Loss')

    # Scatter plot of indices: patterns_tensor vs. output_first_order
    axs[1, 0].scatter(max_indices_patterns_tensor, max_indices_output_first_order, alpha=0.5)

    # Add quadratic regression line
    indices_regression = perform_quadratic_regression(max_indices_patterns_tensor, max_indices_output_first_order)
    axs[1, 0].plot(max_indices_patterns_tensor, indices_regression, color='skyblue', linestyle='--', label='Quadratic Fit')

    axs[1, 0].set_title('Stimuli location: First Order Input vs. First Order Output')
    axs[1, 0].set_xlabel('First Order Input Indices')
    axs[1, 0].set_ylabel('First Order Output Indices')
    axs[1, 0].legend()

    # Scatter plot of values: patterns_tensor vs. output_first_order
    axs[1, 1].scatter(max_values_patterns_tensor, max_values_output_first_order, alpha=0.5)

    # Add quadratic regression line
    values_regression = perform_quadratic_regression(max_values_patterns_tensor, max_values_output_first_order)
    axs[1, 1].plot(max_values_patterns_tensor, values_regression, color='skyblue', linestyle='--', label='Quadratic Fit')

    axs[1, 1].set_title('Stimuli Values: First Order Input vs. First Order Output')
    axs[1, 1].set_xlabel('First Order Input Values')
    axs[1, 1].set_ylabel('First Order Output Values')
    axs[1, 1].legend()

    plt.suptitle(title, fontsize=16, y=1.02)

    # Display the plots in a 2x2 grid
    plt.tight_layout()
    plt.savefig('Blindsight_Pre_training_Loss_{}.png'.format(title.replace(" ", "_").replace("/", "_")), bbox_inches='tight')
    plt.show()
    plt.close(fig)

# Function to configure the training environment and load the models
def config_training(first_order_network, second_order_network, hidden, factor, gelu):
    """
    Configures the training environment by saving the state of the given models and loading them back.
    Initializes testing patterns for evaluation.

    Parameters:
    - first_order_network: The first order network instance.
    - second_order_network: The second order network instance.
    - hidden: Number of hidden units in the first order network.
    - factor: Factor influencing the network's architecture.
    - gelu: Activation function to be used in the network.

    Returns:
    - Tuple of testing patterns, number of samples in the testing patterns, and the loaded model instances.
    """
    # Paths where the models' states will be saved
    PATH = './cnn1.pth'
    PATH_2 = './cnn2.pth'

    # Save the weights of the pretrained networks to the specified paths
    torch.save(first_order_network.state_dict(), PATH)
    torch.save(second_order_network.state_dict(), PATH_2)

    # Generating testing patterns for three different sets
    First_set, First_set_targets = create_patterns(0,factor)
    Second_set, Second_set_targets = create_patterns(1,factor)
    Third_set, Third_set_targets = create_patterns(2,factor)

    # Aggregate testing patterns and their targets for ease of access
    Testing_patterns = [[First_set, First_set_targets], [Second_set, Second_set_targets], [Third_set, Third_set_targets]]

    # Determine the number of samples from the first set (assumed consistent across all sets)
    n_samples = len(Testing_patterns[0][0])

    # Initialize and load the saved states into model instances
    loaded_model = FirstOrderNetwork(hidden, factor, gelu)
    loaded_model_2 = SecondOrderNetwork(gelu)

    loaded_model.load_state_dict(torch.load(PATH))
    loaded_model_2.load_state_dict(torch.load(PATH_2))

    # Ensure the models are moved to the appropriate device (CPU/GPU) and set to evaluation mode
    loaded_model.to(device)
    loaded_model_2.to(device)

    loaded_model.eval()
    loaded_model_2.eval()

    return Testing_patterns, n_samples, loaded_model, loaded_model_2

# @title Set device (GPU or CPU)

def set_device():
    """
    Determines and sets the computational device for PyTorch operations based on the availability of a CUDA-capable GPU.

    Outputs:
    - device (str): The device that PyTorch will use for computations ('cuda' or 'cpu'). This string can be directly used
    in PyTorch operations to specify the device.
    """

    device = "cuda" if torch.cuda.is_available() else "cpu"
    if device != "cuda":
        print("GPU is not enabled in this notebook. \n"
              "If you want to enable it, in the menu under `Runtime` -> \n"
              "`Hardware accelerator.` and select `GPU` from the dropdown menu")
    else:
        print("GPU is enabled in this notebook. \n"
              "If you want to disable it, in the menu under `Runtime` -> \n"
              "`Hardware accelerator.` and select `None` from the dropdown menu")

    return device

device = set_device()

# @title Data retrieval
# @markdown

with contextlib.redirect_stdout(io.StringIO()):
    # URL of the repository to clone
    !git clone https://github.com/SamueleBolotta/RIMs-Sequential-MNIST
    %cd RIMs-Sequential-MNIST

# Imports
from data import MnistData
from networks import MnistModel, LSTM

# Function to download files
def download_file(url, destination):
    print(f"Starting to download {url} to {destination}")
    response = requests.get(url, allow_redirects=True)
    open(destination, 'wb').write(response.content)
    print(f"Successfully downloaded {url} to {destination}")

# Path of the models
model_path = {
    'LSTM': 'lstm_model_dir/lstm_best_model.pt',
    'RIM': 'rim_model_dir/best_model.pt'
}

# URLs of the models
model_urls = {
    'LSTM': 'https://osf.io/4gajq/download',
    'RIM': 'https://osf.io/3squn/download'
}

with contextlib.redirect_stdout(io.StringIO()):
    # Check if model files exist, if not, download them
    for model_key, model_url in model_urls.items():
        if not os.path.exists(model_path[model_key]):
            download_file(model_url, model_path[model_key])
            print(f"{model_key} model downloaded.")
        else:
            print(f"{model_key} model already exists. No download needed.")
