Tutorial 1: Depth vs width¶

Week 2, Day 1: Macrocircuits

By Neuromatch Academy

Content creators: Gabriel Mel de Fontenay

Content reviewers: Surya Ganguli, Xaq Pitkow, Hlib Solodzhuk, Aakash Agrawal, Alish Dipani, Hossein Rezaei, Yousef Ghanbari, Mostafa Abdollahi, Patrick Mineault, Alex Murphy

Production editors: Konstantine Tsafatinos, Ella Batty, Spiros Chavlis, Samuele Bolotta, Hlib Solodzhuk, Alex Murphy

Tutorial Objectives¶

Estimated timing of tutorial: 1 hour

In this tutorial we will take a closer look at the expressivity of neural networks, the ability of neural networks to model a wide range of functions. We will make the following observations:

The universal approximator theorem guarantees that we can approximate any complex function using a network with a single hidden layer. The catch is that the approximating network might need to be extremely wide and the theorem only states the existence of such a model (not exactly how neurons are required per task)
We will explore this issue by constructing a complex function and attempting to fit it with shallow networks of varying widths
To create this complex function, we’ll build a random deep neural network. This is an example of the student-teacher setting, where we attempt to fit a known teacher function (the deep network) using a student model (the shallow/wide network)
We will see that it can be either very easy or very difficult to learn from the deep (teacher) network and this difficulty is related to a form of chaos in the network activations
Each layer of a neural network can effectively expand and fold the input it receives from the previous layer. This repeated expansion and folding grants deep neural networks models high expressivity - ie. allows them to capture the behavior of a large number of different functions

Let’s get started!

Download slides

Setup¶

Install and import feedback gadget¶

# @title Install and import feedback gadget

!pip install vibecheck datatops --quiet

from vibecheck import DatatopsContentReviewContainer
def content_review(notebook_section: str):
    return DatatopsContentReviewContainer(
        "",  # No text prompt
        notebook_section,
        {
            "url": "https://pmyvdlilci.execute-api.us-east-1.amazonaws.com/klab",
            "name": "neuromatch_neuroai",
            "user_key": "wb2cxze8",
        },
    ).render()


feedback_prefix = "W2D1_T1"

Imports¶

# @title Imports

#working with data
import numpy as np

#plotting
import matplotlib.pyplot as plt
import logging
import matplotlib.patheffects as path_effects

#interactive display
import ipywidgets as widgets
from tqdm.notebook import tqdm as tqdm

#modeling
import torch
import torch.nn as nn

Figure settings¶

# @title Figure settings

logging.getLogger('matplotlib.font_manager').disabled = True

%matplotlib inline
%config InlineBackend.figure_format = 'retina' # perform high definition rendering for images and plots
plt.style.use("https://raw.githubusercontent.com/NeuromatchAcademy/course-content/main/nma.mplstyle")

Plotting functions¶

# @title Plotting functions

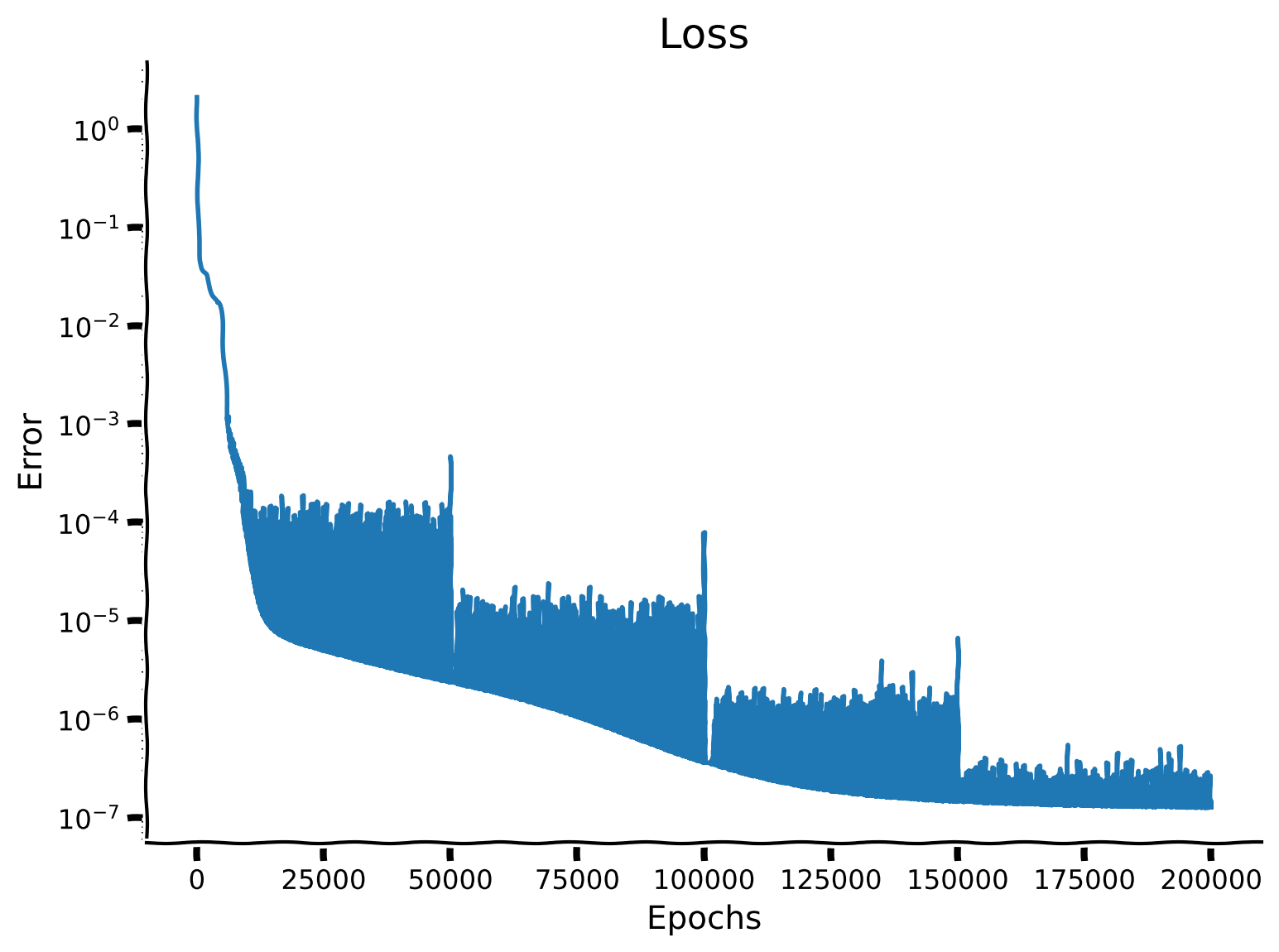

def plot_loss(Es):
    """
    Plot loss progression over time.

    Inputs:
    - Es (np.ndarray): sequence of loss values during training.
    """
    with plt.xkcd():
        plt.semilogy(Es_deep)
        plt.xlabel('Epochs')
        plt.ylabel('Error')
    plt.title("Loss")
    plt.show()

def plot_loss_as_function_of_width(Ws_student, Es_test, Es_train):
    """
    Plot final loss of training as the function of the width of the network.
    """
    with plt.xkcd():
        plt.loglog(Ws_student, Es_test, '.-')
        plt.loglog(Ws_student, Es_train[:,-1], '.-')
        plt.legend(['Test', 'Train'])
        plt.xlabel('Width')
        plt.ylabel('Error')
    plt.title("Loss")
    plt.show()

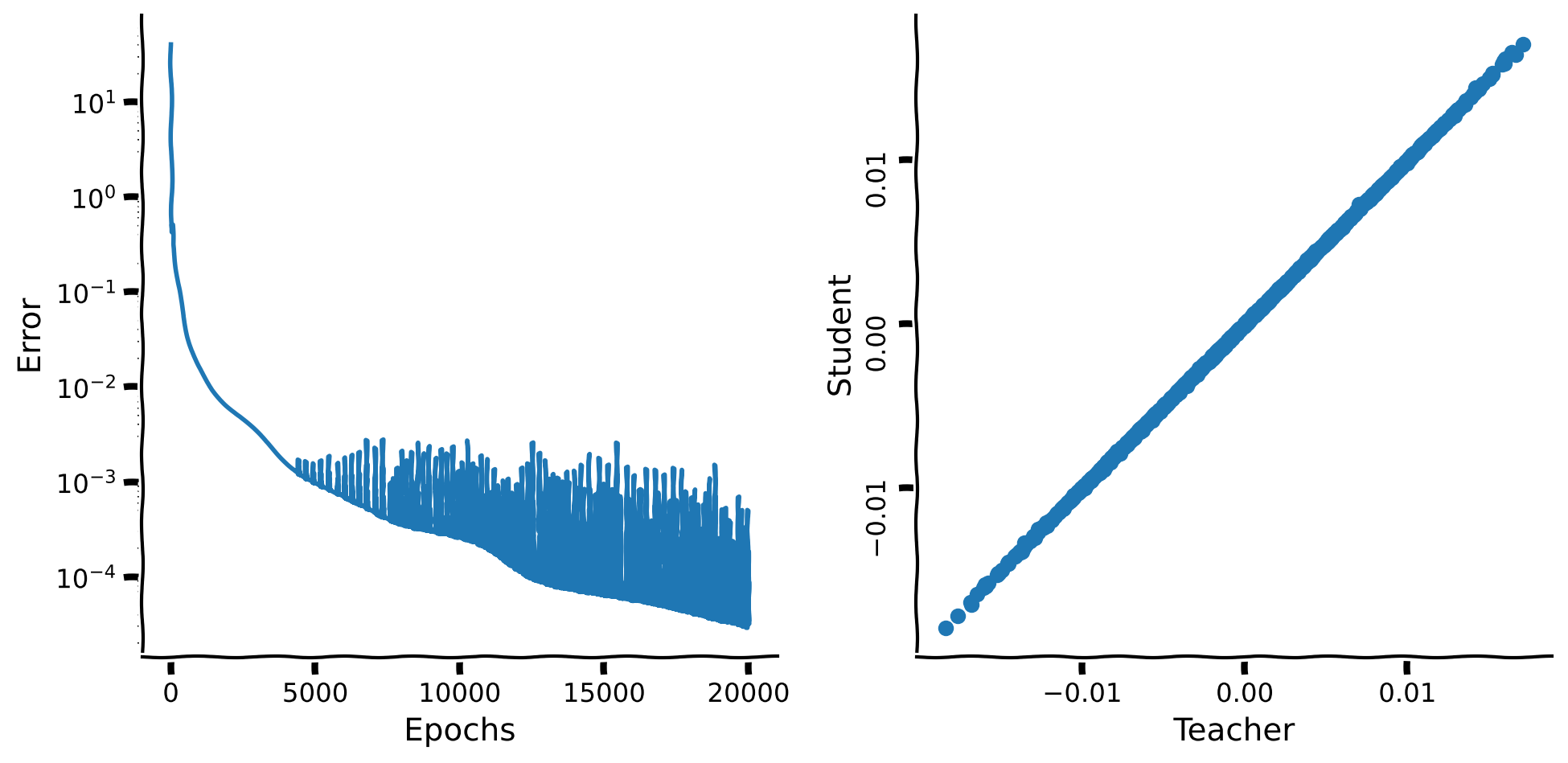

def plot_students_predictions_vs_teacher_values(Es_train, X_test, y_test):
    """
    Plot loss progression over the time and predicted values of student after training versus true ones generated from teacher.

    Inputs:
    - Es_train (np.ndarray): loss values.
    - X_test (np.ndarray): test input data.
    - y_test (np.ndarray): test output data.
    """
    with plt.xkcd():
        fig, axes = plt.subplots(1,2,figsize=(10,5))
        plt.locator_params(nbins=3)

        axes[0].semilogy(Es_train/float(y_test.var()))
        axes[0].set_xlabel('Epochs')
        axes[0].set_ylabel('Error')

        axes[1].scatter(y_test.detach(),student(X_test).detach())
        axes[1].set_xlabel('Teacher')
        axes[1].set_ylabel('Student')

        axes[1].tick_params(axis='y', labelrotation=90)
        axes[1].set_yticks([-0.01,0,0.01])
        axes[1].set_xticks([-0.01,0,0.01])

def expressivity_visualization(layer, projected_traj_1, projected_traj_2, colors):
    """
    Plot projected trajectories for points in the given layer for two different networks.

    Inputs:
    - layer (int): layer of networks to visualize.
    - projected_traj_1 (np.ndarray): standard network projections.
    - projected_traj_2 (np.ndarray): quasilinear network projections.
    - colors (np.ndarray): colors to use in plotting.
    """

    with plt.xkcd():

        fig = plt.figure()
        fig.suptitle(f'Layer {layer}', fontsize=16)

        #standard net
        ax1 = fig.add_subplot(121, projection='3d')
        specific_layer_1 = projected_traj_1[layer]

        for i in range(len(specific_layer_1) - 1):
            ax1.plot([specific_layer_1[i, 0], specific_layer_1[i + 1, 0]], [specific_layer_1[i, 1], specific_layer_1[i + 1, 1]], [specific_layer_1[i, 2], specific_layer_1[i + 1, 2]], color=colors[i])

        for line in ax1.get_lines():
            line.set_path_effects([path_effects.Normal()])

        ax1.set_title('Standard Net')
        ax1.set_xlabel('X')
        ax1.set_ylabel('Y')
        ax1.set_zlabel('Z')

        ax2 = fig.add_subplot(122, projection='3d')
        specific_layer_2 = projected_traj_2[layer]

        for i in range(len(specific_layer_2) - 1):
            ax2.plot([specific_layer_2[i, 0], specific_layer_2[i + 1, 0]], [specific_layer_2[i, 1], specific_layer_2[i + 1, 1]], [specific_layer_2[i, 2], specific_layer_2[i + 1, 2]], color=colors[i])

        for line in ax2.get_lines():
            line.set_path_effects([path_effects.Normal()])

        ax2.set_title('Quasi-Linear Net')
        ax2.set_xlabel('X')
        ax2.set_ylabel('Y')
        ax2.set_zlabel('Z')

        plt.tight_layout()
        plt.show()

Helper functions¶

# @title Helper functions

def generate_trajectories(W, D, P, sigma_1, sigma_2):
    """
    Generate trajectories for evenly spaced points from unit circle through networks and project them to 3D space.

    Inputs:
    - W (int): width of each layer.
    - D (int): depth of each layer.
    - P (int): number of points from unit circle.
    - sigma_1 (float): standard net standard deviation.
    - sigma_2 (float): quasi-linear net standard deviation.
    """
    #initialize nets
    standard_net = make_MLP(2, W, D)
    initialize_layers(standard_net, sigma_1)

    quasilinear_net = make_MLP(2, W, D)
    initialize_layers(quasilinear_net, sigma_2)

    #sample points from unit circle
    theta = np.linspace(0, 2 * np.pi, P)
    points = np.array([np.cos(theta), np.sin(theta)]).T

    #generate trajectories for first net
    parameters = [param for param in standard_net.parameters()]

    for index in range(len(parameters)):
        if not index:
            traj_1 = [np.tanh(points @ parameters[index].detach().numpy().T)]
        else:
            traj_1.append(np.tanh(traj_1[-1] @ parameters[index].detach().numpy().T))

    #generate trajectories for second net
    parameters = [param for param in quasilinear_net.parameters()]

    for index in range(0, len(parameters)):
        if not index:
            traj_2 = [np.tanh(points @ parameters[index].detach().numpy().T)]
        else:
            traj_2.append(np.tanh(traj_2[-1] @ parameters[index].detach().numpy().T))

    return np.array(traj_1[:-1]), np.array(traj_2[:-1])

Set random seed¶

# @title Set random seed

import random
import numpy as np

def set_seed(seed=None, seed_torch=True):
  if seed is None:
    seed = np.random.choice(2 ** 32)
  random.seed(seed)
  np.random.seed(seed)
  if seed_torch:
    torch.manual_seed(seed)
    torch.cuda.manual_seed_all(seed)
    torch.cuda.manual_seed(seed)
    torch.backends.cudnn.benchmark = False
    torch.backends.cudnn.deterministic = True

set_seed(seed = 42)

Section 1: Introduction¶

In this section we will write some Python functions to help build some neural networks that will allow us to effectively examine the expressivity of shallow versus deep networks. We will specifically look at this issue through the lens of the universal approximation theorem and ask ourselves what deeper neural networks give us in terms of the ability of those models to capture a wide range of functions. As you will recall from today’s introduction video, the idea of each layer being able to fold activations via an activation function increases the ability to model nonlinear functions much more effectively. After going through this tutorial, this idea will hopefully be much clearer.

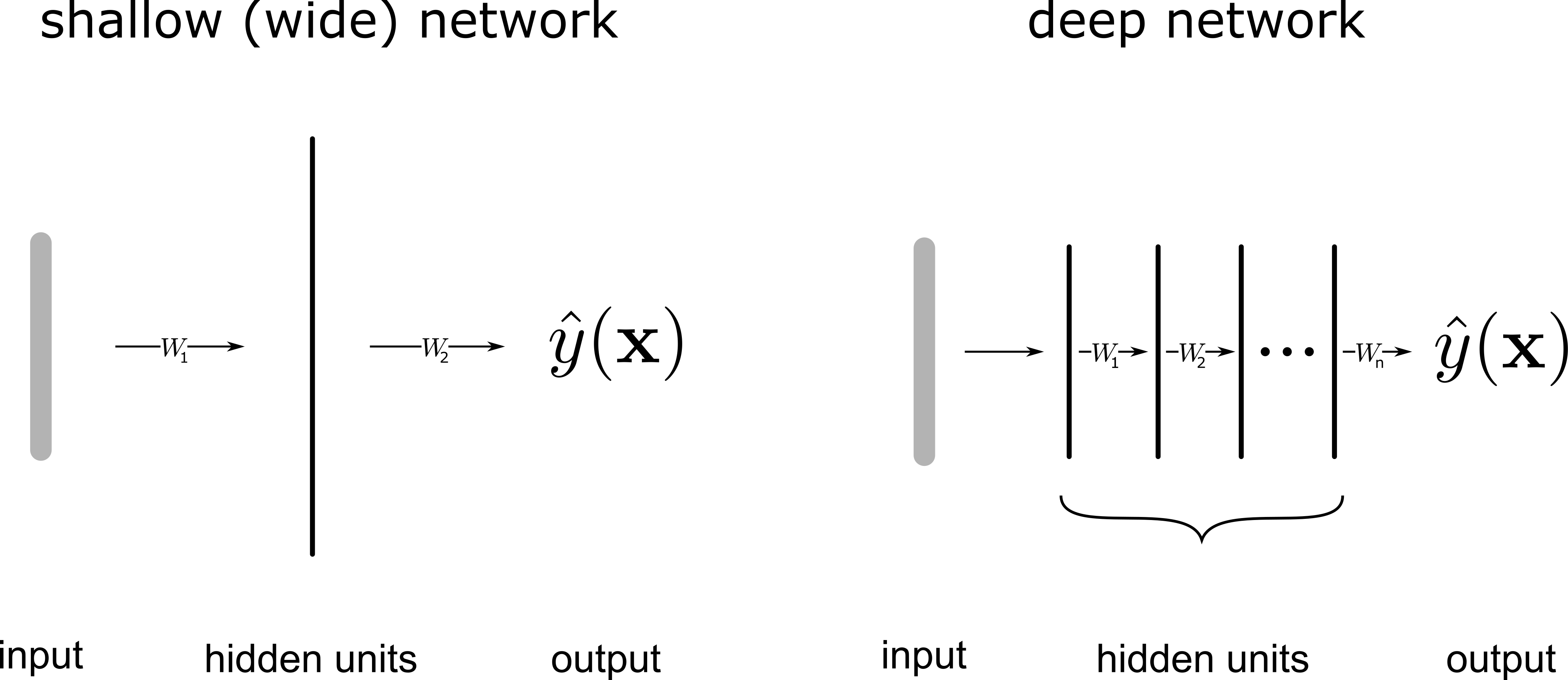

By shallow network, we mean one with a very small number of layers (e.g. one). A shallow networks can be wide if it has many, many neurons in this layer, or it can be smaller, having only a limited number of neurons. In contrast, by deep networks, we refer to the number of layers in the network. It’s important to keep in mind that the term wide in the terminology we will use specifically refers to the number of neurons in a layer, not the number of layers in a network. If we take a single layer in a shallow or a deep network, we can describe it as being wide if it has a very large number of neurons.

Video 1: Introduction

Youtube

Bilibili

The universal approximator theorem (UAT) guarantees that we can approximate any function arbitrarily well using a shallow network - ie. a network with a single hidden layer (figure below, left). So why do we need depth? The catch in the UAT is that approximating a complex function with a shallow network can require a very large number of hidden units - ie. the network must be very wide. The inability of shallow networks to efficiently implement certain functions suggests that network depth may be one of the brain’s computational secret sauces.

To illustrate this fact, we’ll create a complex function and then attempt to fit it with single-hidden-layer neural networks of different widths. What we’ll find is that although the UAT guarantees that sufficiently wide networks can approximate our function, the performance will actually not be very good for our shallow nets of modest width.

One easy way to create a complex function is to build a random deep neural network (figure above, right), which serves as a teacher network (generating the ground truth outputs), and we’ll also have a student network, whose goal is to learn the function defined by the teacher network. This approach - known as the student-teacher setting - is useful for both the computational and mathematical study of neural networks since it gives us complete control of the data generation process. Unlike with real-world data, we know the exact distribution of inputs and correct outputs. This means we aren’t restricted by having to factor in any noisy signals that are not connected to our inputs.

Finally, we will show that depending on the distribution of the weights, a random deep neural network can be either very difficult or very easy to approximate with a shallow network. The complexity of the function computed by a random deep network thus depends crucially on the weight distribution. One can actually understand the boundary between hard and easy cases as a kind of boundary between chaos and non-chaos in a certain dynamical system. We will confirm that on the non-chaotic side, a random deep neural network can be effectively approximated by a shallow net. This demonstration will be based on ideas from the following paper:

Exponential expressivity in deep neural networks through transient chaos (Poole et al., 2016).

Video 2: Setup

Youtube

Bilibili

Coding Exercise 1: Create an MLP¶

The code below implements a function that takes in an input dimension, a layer width, and a number of layers and creates a simple MLP in pytorch where each layer has the same width. In between each layer, we insert a hyperbolic tangent nonlinearity layer (nn.Tanh()).

Convention: Because we will count the input as a layer, a depth of 2 will mean a network with just one hidden layer, followed by the output neuron. A depth of 3 will mean 2 hidden layers, and so on.

Network Implementation¶

# @title Network Implementation

def make_MLP(n_in, W, D, nonlin = 'tanh'):
    """
    Create `nn.Sequential()` fully-connected model in pytorch with the given parameters.

    Inputs:
    - n_in (int): input dimension.
    - W (int): width of the network.
    - D (int): depth if the network.
    - nonlin (str, default = "tanh"): activation function to use.

    Outputs:
    - net (nn.Sequential): network.
    """

    #activation function
    if nonlin == 'tanh':
        nonlin = nn.Tanh()
    elif nonlin == 'relu':
        nonlin == nn.ReLU()
    else:
        assert(False)

    # Assemble D-1 hidden layers and one output layer

    # input layer
    layers = [nn.Linear(n_in, W, bias = False), nonlin]
    for i in range(D - 2):
        # linear layer
        layers.append(nn.Linear(W, W, bias = False))
        # activation function
        layers.append(nonlin)
    # output layer
    layers.append(nn.Linear(W, 1, bias = False))

    return nn.Sequential(*layers)

net = make_MLP(n_in = 10, W = 3, D = 2)

Now, we implement an auxiliary function which calculates the number of parameters in the MLP.

def get_num_params(n_in,W,D):
    """
    Simple function to compute number of learned parameters in an MLP with given dimensions.

    Inputs:
    - n_in (int): input dimension.
    - W (int): width of the network.
    - D (int): depth of the network.

    Outputs:
    - num_params (int): number of parameters in the network.
    """
    ###################################################################
    ## Fill out the following then remove
    raise NotImplementedError("Student exercise: complete function which calculates the number of parameters in the defined architecture of MLP.")
    ###################################################################

    input_params = ... * ...
    hidden_layers_params = (...) * ...**2
    output_params = ...
    return input_params + hidden_layers_params + output_params

np.testing.assert_allclose(get_num_params(10, 3, 2), 33, err_msg = "Expected value of parameters number is different!")

---------------------------------------------------------------------------
NotImplementedError                       Traceback (most recent call last)
Cell In[8], line 23
     20     output_params = ...
     21     return input_params + hidden_layers_params + output_params
---> 23 np.testing.assert_allclose(get_num_params(10, 3, 2), 33, err_msg = "Expected value of parameters number is different!")

Cell In[8], line 15, in get_num_params(n_in, W, D)
      2 """
      3 Simple function to compute number of learned parameters in an MLP with given dimensions.
      4
   (...)
     11 - num_params (int): number of parameters in the network.
     12 """
     13 ###################################################################
     14 ## Fill out the following then remove
---> 15 raise NotImplementedError("Student exercise: complete function which calculates the number of parameters in the defined architecture of MLP.")
     16 ###################################################################
     18 input_params = ... * ...

NotImplementedError: Student exercise: complete function which calculates the number of parameters in the defined architecture of MLP.

Click for solution

Coding Exercise 2: Initialize model weights¶

Write a function that, given a model and $\sigma$ , initializes all weights in the model according to a normal (Gaussian) distribution with mean 0 and standard deviation

\frac{\sigma}{\sqrt{n_{in}}},

(1)

where $n_{in}$ is the number of inputs to the layer.

set_seed(42)

def initialize_layers(net,sigma):
    """
    Set weight to each of the parameters in the model of value sigma/sqrt(n_in), where n_in is the number of inputs to the layer.

    Inputs:
    - net (nn.Sequential): network.
    - sigma (float): standard deviation.
    """
    ###################################################################
    ## Fill out the following then remove
    raise NotImplementedError("Student exercise: set initial values to the weights of MLP.")
    ###################################################################
    for param in ...:
        n_in = param.shape[1]
        nn.init.normal_(param, std = ...)

initialize_layers(net, 1)
np.testing.assert_allclose(next(net.parameters())[0][0].item(), 0.609, err_msg = "Expected value of parameter is different!", atol = 1e-3)

---------------------------------------------------------------------------
NotImplementedError                       Traceback (most recent call last)
Cell In[9], line 19
     16         n_in = param.shape[1]
     17         nn.init.normal_(param, std = ...)
---> 19 initialize_layers(net, 1)
     20 np.testing.assert_allclose(next(net.parameters())[0][0].item(), 0.609, err_msg = "Expected value of parameter is different!", atol = 1e-3)

Cell In[9], line 13, in initialize_layers(net, sigma)
      4 """
      5 Set weight to each of the parameters in the model of value sigma/sqrt(n_in), where n_in is the number of inputs to the layer.
      6
   (...)
      9 - sigma (float): standard deviation.
     10 """
     11 ###################################################################
     12 ## Fill out the following then remove
---> 13 raise NotImplementedError("Student exercise: set initial values to the weights of MLP.")
     14 ###################################################################
     15 for param in ...:

NotImplementedError: Student exercise: set initial values to the weights of MLP.

Click for solution

Coding Exercise 3: Generate a dataset¶

Given a network, generate the input data by sampling from a multivariate Gaussian distribution and output data by passing the inputs through the network. Don’t forget to .detach() the outputs - otherwise, gradients will be computed for these (with respect to the teacher weights, which we don’t want).

set_seed(42)

def make_data(net, n_in, n_examples):
    """
    Generate data by sampling from a multivariate gaussian distribution, and output data by passing the inputs through the network.

    Inputs:
    - net (nn.Sequential): network.
    - n_in (int): input dimension.
    - n_examples (int): number of data examples to generate.

    Outputs:
    - X (torch.tensor): input data.
    - y (torch.tensor): output data.
    """
    ###################################################################
    ## Fill out the following then remove
    raise NotImplementedError("Student exercise: complete data generation.")
    ###################################################################
    X = torch.randn(..., ...)
    y = net(...).detach()
    return X, ...

X, y = make_data(net, 10, 10000000)
np.testing.assert_allclose(X[0][0].item(), 1.927, err_msg = "Expected value of data is different!", atol = 1e-3)

---------------------------------------------------------------------------
NotImplementedError                       Traceback (most recent call last)
Cell In[10], line 24
     21     y = net(...).detach()
     22     return X, ...
---> 24 X, y = make_data(net, 10, 10000000)
     25 np.testing.assert_allclose(X[0][0].item(), 1.927, err_msg = "Expected value of data is different!", atol = 1e-3)

Cell In[10], line 18, in make_data(net, n_in, n_examples)
      4 """
      5 Generate data by sampling from a multivariate gaussian distribution, and output data by passing the inputs through the network.
      6
   (...)
     14 - y (torch.tensor): output data.
     15 """
     16 ###################################################################
     17 ## Fill out the following then remove
---> 18 raise NotImplementedError("Student exercise: complete data generation.")
     19 ###################################################################
     20 X = torch.randn(..., ...)

NotImplementedError: Student exercise: complete data generation.

Click for solution

Coding Exercise 4: Train model and compute loss¶

In this coding exercise, write a function that will train a given net on a given dataset. Function parameters include:

the network (net)
training inputs (X)
the outputs (y)
the number of steps (n_epochs)
the learning rate (lr)

Use the mean-squared error (MSE) loss function in the learning algorithm. You might need to check the pytorch documentation to see the exact layer name you will need to call for this.

set_seed(42)

def train_model(net, X, y, n_epochs, lr, progressbar=True):
    """
    Perform training of the network.

    Inputs:
    - net (nn.Sequential): network.
    - X (torch.tensor): input data.
    - y (torch.tensor): output data.
    - n_epochs (int): number of epochs to train the model for.
    - lr (float): learning rate for optimizer (we will use `Adam` by default).
    - progressbar (bool, default = True): whether to use additional bar for displaying training progress.

    Outputs:
    - Es (np.ndarray): array which contains loss for each epoch.
    """
    ###################################################################
    ## Fill out the following then remove
    raise NotImplementedError("Student exercise: complete training of the network.")
    ###################################################################

    # Set up optimizer
    loss_fn = ...
    optimizer = torch.optim.Adam(..., lr = ...)

    # Run training loop
    Es = np.zeros(...)
    for n in (tqdm(range(n_epochs)) if progressbar else range(n_epochs)):
        y_pred = net(...)
        loss = loss_fn(..., y)
        optimizer.zero_grad()
        loss.backward()
        optimizer.step()
        Es[n] = float(...)

    return Es

Es = train_model(net, X, y, 10, 1e-3)
np.testing.assert_allclose(Es[0], 0.0, err_msg = "Expected value of loss is different!", atol = 1e-3)

---------------------------------------------------------------------------
NameError                                 Traceback (most recent call last)
Cell In[11], line 39
     35         Es[n] = float(...)
     37     return Es
---> 39 Es = train_model(net, X, y, 10, 1e-3)
     40 np.testing.assert_allclose(Es[0], 0.0, err_msg = "Expected value of loss is different!", atol = 1e-3)

NameError: name 'X' is not defined

Click for solution

Coding Exercise 4 Discussion¶

Why do you think we obtain zero error right away (on the first epoch)?

Click for solution

Now, write a helper function that computes the loss of a net on a dataset. It takes the following parameters:

the network (net)
the dataset inputs (X)
the dataset outputs (y)

def compute_loss(net, X, y):
    """
    Calculate loss on given network and data.

    Inputs:
    - net (nn.Sequential): network.
    - X (torch.tensor): input data.
    - y (torch.tensor): output data.

    Outputs:
    - loss (float): computed loss.
    """
    ###################################################################
    ## Fill out the following then remove
    raise NotImplementedError("Student exercise: complete loss calculation.")
    ###################################################################
    loss_fn = ...

    y_pred = ...
    loss = loss_fn(..., ...)
    loss = float(...)
    return loss

loss = compute_loss(net, X, y)
np.testing.assert_allclose(loss, 0.0, err_msg = "Expected value of loss is different!", atol = 1e-3)

---------------------------------------------------------------------------
NameError                                 Traceback (most recent call last)
Cell In[12], line 24
     21     loss = float(...)
     22     return loss
---> 24 loss = compute_loss(net, X, y)
     25 np.testing.assert_allclose(loss, 0.0, err_msg = "Expected value of loss is different!", atol = 1e-3)

NameError: name 'X' is not defined

Click for solution

Section 2: Fitting a deep network with a shallow network¶

Estimated timing to here from start of tutorial: 20 minutes

We will now use the functions we created to experiment with fitting various student models to our complex function (which we defined earlier to be a randomly initialized deep neural network, what we defined as the teacher network). In particular, we will see to what extent it is possible to fit a deep net using a shallow net. We will freeze a deep teacher network and then fit it with a single-hidden-layer net with varying width sizes. In principle, if the number of hidden units is large enough, the error should be low (according to the universal approximation theorem)

Let’s see if that’s the case!

Video 3: Deep network fit with a shallow network

Youtube

Bilibili

Coding Exercise 5: Create learning problem¶

Create a deep teacher network that accepts inputs of size 5. Give the network a width of 5 and a depth of 5. Use this to generate both a training and test set with 4,000 examples for training and 1,000 for testing. Initialize weights with a standard deviation of 2.0.

###################################################################
## Fill out the following then remove
raise NotImplementedError("Student exercise: complete set up.")
###################################################################
torch.manual_seed(-1)

# Create teacher
n_in = ...     # input dimension
W_teacher, D_teacher = ..., ...  # teacher width, depth
sigma_teacher = ...     # teacher weight variance
teacher = make_MLP(..., ..., ...)
initialize_layers(..., ...)

# generate train and test set
N_train, N_test = ..., ...
X_train, y_train = make_data(..., ..., ...)
X_test, y_test = make_data(..., ..., ...)

np.testing.assert_allclose(X_test[0][0].item(), 0.19076240062713623, err_msg = "Expected value of data is different!")

---------------------------------------------------------------------------
NotImplementedError                       Traceback (most recent call last)
Cell In[13], line 3
      1 ###################################################################
      2 ## Fill out the following then remove
----> 3 raise NotImplementedError("Student exercise: complete set up.")
      4 ###################################################################
      5 torch.manual_seed(-1)

NotImplementedError: Student exercise: complete set up.

Click for solution

Coding Exercise 5 Discussion¶

What is the minimum error achievable by an MLP on the generated problem?
What is the minimum error achievable by a 1-hidden-layer MLP?

Click for solution

Coding Exercise 6: Train net with the same architecture¶

Create a student network with the same architecture as the teacher network - that is, the same width and depth. Train it and confirm that a network with the same architecture can indeed achieve low test error. You may need to train for a large number of iterations, and you may need to adjust the learning rate as learning proceeds.

First, let’s confirm that the number of training examples is greater than 3 times the number of parameters, so we have enough data to train the network.

n_in = 5
W_student, D_student = 5, 5
student = make_MLP(n_in, W_student, D_student)

# make sure we have enough data
P = get_num_params(n_in, W_student, D_student)
assert(N_train > 3*P)

---------------------------------------------------------------------------
NotImplementedError                       Traceback (most recent call last)
Cell In[14], line 6
      3 student = make_MLP(n_in, W_student, D_student)
      5 # make sure we have enough data
----> 6 P = get_num_params(n_in, W_student, D_student)
      7 assert(N_train > 3*P)

Cell In[8], line 15, in get_num_params(n_in, W, D)
      2 """
      3 Simple function to compute number of learned parameters in an MLP with given dimensions.
      4
   (...)
     11 - num_params (int): number of parameters in the network.
     12 """
     13 ###################################################################
     14 ## Fill out the following then remove
---> 15 raise NotImplementedError("Student exercise: complete function which calculates the number of parameters in the defined architecture of MLP.")
     16 ###################################################################
     18 input_params = ... * ...

NotImplementedError: Student exercise: complete function which calculates the number of parameters in the defined architecture of MLP.

Now, let’s train the student and observe the loss on a semi-log plot (the y-axis is logarithmic)! Your task is to complete the missing parts of the code. While the model is being trained, you can go to the next coding exercise and return back to observe the results shortly. It will take approximately 5 minutes for the model to complete its training call.

###################################################################
## Fill out the following then remove
raise NotImplementedError("Student exercise: train student on the generated data from teacher.")
###################################################################
lr = 0.003
Es_deep = []
for i in range(4):
    Es_deep.append(train_model(..., ..., ..., 50000, ...))
    #observe we reduce learning rate
    lr /= 3
Es_deep = np.array(Es_deep)
Es_deep = Es_deep.ravel()

# evaluate test error
loss_deep = compute_loss(..., ..., ...) / float(y_test.var())
print("Loss of deep student: ",loss_deep)
plot_loss(Es_deep)

---------------------------------------------------------------------------
NotImplementedError                       Traceback (most recent call last)
Cell In[15], line 3
      1 ###################################################################
      2 ## Fill out the following then remove
----> 3 raise NotImplementedError("Student exercise: train student on the generated data from teacher.")
      4 ###################################################################
      5 lr = 0.003

NotImplementedError: Student exercise: train student on the generated data from teacher.

Click for solution

Example output:

Coding Exercise 7: Train a 2 layer neural net with varying widths¶

Let us now try to fit the deep teacher network with a shallow student network. Let’s give the student a single hidden layer, and let’s study the error as a function of the student width $W_s$ . For a range of widths between, say, 5 and 200, create a student network, train it on the training set, and compute its test error. The training time will take approximately 2 minutes.

Then, plot the training and testing errors as a function of width on a log-log plot. How does the error of the shallow network compare to that of the deep network?

D_student = 2  # student depth
Ws_student = np.array([5, 15, 45, 135]) # widths

lr = 1e-3
n_epochs = 20000
Es_shallow_train = np.zeros((len(Ws_student), n_epochs))
Es_shallow_test = np.zeros(len(Ws_student))

###################################################################
## Fill out the following then remove
raise NotImplementedError("Student exercise: train different students on the already generated data from teacher.")
###################################################################

for index, W_student in enumerate(tqdm(Ws_student)):

    student = make_MLP(..., ..., ...)

    # make sure we have enough data
    P = get_num_params(n_in, W_student, D_student)
    assert(N_train > 3*P)

    # train
    Es_shallow_train[index] = train_model(..., ..., ..., ..., lr, progressbar=False)
    Es_shallow_train[index] /= y_test.var()

    # evaluate test error
    loss = compute_loss(..., ..., ...)/y_test.var()
    Es_shallow_test[index] = ...

plot_loss_as_function_of_width(Ws_student, Es_shallow_test, Es_shallow_train)

---------------------------------------------------------------------------
NotImplementedError                       Traceback (most recent call last)
Cell In[16], line 11
      7 Es_shallow_test = np.zeros(len(Ws_student))
      9 ###################################################################
     10 ## Fill out the following then remove
---> 11 raise NotImplementedError("Student exercise: train different students on the already generated data from teacher.")
     12 ###################################################################
     14 for index, W_student in enumerate(tqdm(Ws_student)):

NotImplementedError: Student exercise: train different students on the already generated data from teacher.

Click for solution

Example output:

Coding Exercise 8: Network size prediction¶

Let’s suppose that the test error will continue to improve with increasing width according to the same trend in the previous plot - which is probably too optimistic but will let us do some back-of-the-envelope calculations. Specifically, let us assume there is a linear relationship

\log E=m \log W+b

(2)

between the log of the width and the log of the error. Fit this linear model from our experiment and use it to predict the number of hidden units needed to achieve a relative error of, say, 10^-6.

error_target = 1e-6

###################################################################
## Fill out the following then remove
raise NotImplementedError("Student exercise: fit linear model and predict the number of hidden units.")
###################################################################

m,b = np.polyfit(np.log(...), np.log(...), 1)
print('Predicted width: ', np.exp((np.log(...) - ...) / ...))

---------------------------------------------------------------------------
NotImplementedError                       Traceback (most recent call last)
Cell In[17], line 5
      1 error_target = 1e-6
      3 ###################################################################
      4 ## Fill out the following then remove
----> 5 raise NotImplementedError("Student exercise: fit linear model and predict the number of hidden units.")
      6 ###################################################################
      8 m,b = np.polyfit(np.log(...), np.log(...), 1)

NotImplementedError: Student exercise: fit linear model and predict the number of hidden units.

Click for solution

Based on this, do you think that a reasonably sized shallow network could learn this task with low error?

Section 3: Deep networks in the quasi-linear regime¶

Estimated timing to here from start of tutorial: 45 minutes

We’ve just shown that certain deep networks are difficult to fit. In this section, we will discuss a regime in which a shallow network is able to approximate a deep teacher relatively well.

Video 4: Deep networks in the quasilinear regime

Youtube

Bilibili

One of the reasons that shallow nets cannot fit deep nets, in general, is that random deep nets, in certain regimes, behave like chaotic systems: each layer can be thought of as a single step of a dynamical system, and the number of layers plays the role of the number of time steps. A deep network, therefore, effectively subjects its input to long-time chaotic dynamics, which are, almost by definition, very difficult to predict accurately. In particular, shallow nets simply cannot capture the complex mapping implemented by deeper networks without resorting to an astronomical number of hidden units. Another way to interpret this behavior is that the many layers of a deep network repeatedly stretch and fold their inputs, allowing the network to implement a large number of complex functions - an idea known as expressivity (Poole et al. 2016).

However, in other regimes, for example, when the weights of the teacher network are small, the dynamics implemented by the teacher network are no longer chaotic. In fact, for small enough weights, they are nearly linear. In this regime, we’d expect a shallow network to be able to approximate a deep teacher relatively well. This is what we mean by neural networks in a quasi-linear regime.

For more on these ideas, see the paper:

Exponential expressivity in deep neural networks through transient chaos (Poole et al., 2016).

To test this idea, we’ll repeat the exercise above, this time initializing the teacher weights with a small $\sigma$ , say, 0.4, so that the teacher network is in the so-called quasi-linear regime.

Coding Exercise 9: Create Dataset & Train a Student Network¶

Create training and test sets. Initialize the teacher network with $\sigma_{t} = 0.4$ .

###################################################################
## Fill out the following then remove
raise NotImplementedError("Student exercise: complete set up.")
###################################################################
torch.manual_seed(-1)

# Create teacher
n_in = 5     # input dimension
W_teacher, D_teacher = 5, 5  # teacher width, depth
sigma_teacher = ...     # teacher weight variance
teacher = make_MLP(..., ..., ...)
initialize_layers(..., ...)

# generate train and test set
N_train, N_test = 4000, 1000
X_train, y_train = make_data(..., ..., ...)
X_test, y_test = make_data(..., ..., ...)

---------------------------------------------------------------------------
NotImplementedError                       Traceback (most recent call last)
Cell In[18], line 3
      1 ###################################################################
      2 ## Fill out the following then remove
----> 3 raise NotImplementedError("Student exercise: complete set up.")
      4 ###################################################################
      5 torch.manual_seed(-1)

NotImplementedError: Student exercise: complete set up.

Click for solution

Give the student network a single hidden layer with 10 units. Train it for a similar amount of time as before. Determine the relative MSE.

###################################################################
## Fill out the following then remove
raise NotImplementedError("Student exercise: train student on the generated data from special teacher.")
###################################################################

W_student, D_student = ..., ...  # student width, depth

lr = 1e-3
n_epochs = 20000
Es_shallow_train = np.zeros((len(Ws_student),n_epochs))
Es_shallow_test = np.zeros(len(Ws_student))

student = make_MLP(..., ..., ...)
initialize_layers(student, sigma_teacher)

# make sure we have enough data
P = get_num_params(n_in, W_student, D_student)
assert(N_train > 3*P)

# train
Es_shallow_train = train_model(..., ..., ..., n_epochs, lr, progressbar=True)

# # evaluate test error
Es_shallow_test = compute_loss(..., ..., ...)/float(y_test.var())
print('Shallow student loss: ',Es_shallow_test)
plot_students_predictions_vs_teacher_values(Es_shallow_train, X_test, y_test)

---------------------------------------------------------------------------
NotImplementedError                       Traceback (most recent call last)
Cell In[19], line 3
      1 ###################################################################
      2 ## Fill out the following then remove
----> 3 raise NotImplementedError("Student exercise: train student on the generated data from special teacher.")
      4 ###################################################################
      6 W_student, D_student = ..., ...  # student width, depth

NotImplementedError: Student exercise: train student on the generated data from special teacher.

Click for solution

Example output:

Video 5: Conclusion & Interactive Demo

Youtube

Bilibili

Interactive Demo 1: Deep networks expressivity¶

In this demo, we invite you to explore the expressivity of two distinct deep networks already introduced earlier: one with $\sigma = 2$ and another (quasi-linear) with $\sigma = 0.4$ .

We initialize two deep networks with $D=20$ layers with $W = 100$ hidden units each but different variances in their weight initializations. Then, 400 input data points are generated on a unit circle. We will examine how these points propagated through the networks by looking at the effect of the transformations that each neural network layer applies to the data.

To visualize each layer’s activity, we randomly project it into 3 dimensions. The slider below controls which layer you are seeing. On the left, you’ll see how a standard network processes its inputs, and on the right, how a quasi-linear network does so. As outlined in the video, the principle takehome message is that low values for the variance parameter in the weight initializations mean that each layer effectively performs a linear transformation, which only rotates and stretches the circular input we put into both networks. The chaotic regime of the standard network allows for a much greater expressivitiy due to this phenomenon!

Execute the cell to observe interactive widget

# @markdown Execute the cell to observe interactive widget

set_seed(42)

W = 100 #width
D = 20 #depth
P = 400 #number of points
sigma_1 = 2 #standard net
sigma_2 = 0.4 #quasi-linear net

colors = plt.cm.hsv(np.linspace(0, 1, P)) #color
random_projection = np.random.normal(size = (W, 3)) #random projection

traj_1, traj_2 = generate_trajectories(W, D, P, sigma_1, sigma_2)

#project trajectories from 100-D to 3-D
projected_traj_1 = traj_1 @ random_projection
projected_traj_2 = traj_2 @ random_projection

@widgets.interact
def expressivity_interactive_visualization(layer = widgets.IntSlider(description="Layer", min=0, max=18, step=1, value=0)):
    expressivity_visualization(layer, projected_traj_1, projected_traj_2, colors)

---------------------------------------------------------------------------
NotImplementedError                       Traceback (most recent call last)
Cell In[20], line 14
     11 colors = plt.cm.hsv(np.linspace(0, 1, P)) #color
     12 random_projection = np.random.normal(size = (W, 3)) #random projection
---> 14 traj_1, traj_2 = generate_trajectories(W, D, P, sigma_1, sigma_2)
     16 #project trajectories from 100-D to 3-D
     17 projected_traj_1 = traj_1 @ random_projection

Cell In[5], line 16, in generate_trajectories(W, D, P, sigma_1, sigma_2)
     14 #initialize nets
     15 standard_net = make_MLP(2, W, D)
---> 16 initialize_layers(standard_net, sigma_1)
     18 quasilinear_net = make_MLP(2, W, D)
     19 initialize_layers(quasilinear_net, sigma_2)

Cell In[9], line 13, in initialize_layers(net, sigma)
      4 """
      5 Set weight to each of the parameters in the model of value sigma/sqrt(n_in), where n_in is the number of inputs to the layer.
      6
   (...)
      9 - sigma (float): standard deviation.
     10 """
     11 ###################################################################
     12 ## Fill out the following then remove
---> 13 raise NotImplementedError("Student exercise: set initial values to the weights of MLP.")
     14 ###################################################################
     15 for param in ...:

NotImplementedError: Student exercise: set initial values to the weights of MLP.

Interactive Demo 1 Discussion¶

What is the qualitative difference between trajectories propagation through these networks? Does it fit what we have seen earlier with wide student approximation?

Click for solution

Summary¶

Estimated timing of tutorial: 1 hour

In this tutorial:

We discussed the universal approximator theorem, which guarantees that we can approximate any complex function using a network with a single hidden layer.
To test this idea, we built a deep teacher network and attempted to fit it with a shallow student network.
We found that achieving good performance requires a very wide network - i.e., a very large number of hidden units.
We found that if the teacher network is initialized with very small weights, the fitting becomes very easy.
We discussed how the fitting difficulty is related to whether the teacher is initialized in the chaotic regime.
Chaotic behavior is related to network expressivity, the network’s ability to implement a large number of complex functions.

The Big Picture¶

So, how do the topics covered in this tutorial relate to our exploration of the theme of generalization? We have seen that deep neural networks in certain regimes differentially affect the transformation of the inputs and this has an effect on the expressivity of the network. The transformations that take place between shallow and deep neural network make different testable environments for generalization capacity. We leave you to think about, taking what you have learned in this tutorial, what kind of relationship might there be for models that generalize well to inputs outside of the training distribution. Do shallow networks capture the specific details of training inputs? Do they model the problem at a level that pays more attention to surface features or important low-level features (that generalize better)? There is no correct answer to this question, but it’s a good exercise to think about and start forming your own thoughts and ideas.
