# @title Install and import feedback gadget

from os import environ as env
if any(var in env for var in ["COLAB_RELEASE_TAG", "KAGGLE_KERNEL_RUN_TYPE"]):
    %pip install torch torchvision matplotlib numpy scikit-learn scipy vibecheck --quiet
    %pip install rsatoolbox==0.1.5 --quiet

from vibecheck import DatatopsContentReviewContainer
def content_review(notebook_section: str):
    return DatatopsContentReviewContainer(
        "",  # No text prompt
        notebook_section,
        {
            "url": "https://pmyvdlilci.execute-api.us-east-1.amazonaws.com/klab",
            "name": "neuromatch_neuroai",
            "user_key": "wb2cxze8",
        },
    ).render()


feedback_prefix = "W1D3_T2"

# @title Import dependencies

# Standard library imports
from collections import OrderedDict
import logging

# External libraries: General utilities
import argparse
import numpy as np

# PyTorch related imports
import torch
import torch.nn as nn
import torch.nn.functional as F
import torch.optim as optim
from torch.optim.lr_scheduler import StepLR
from torchvision import datasets, transforms
from torchvision.models.feature_extraction import create_feature_extractor, get_graph_node_names
from torchvision.utils import make_grid

# Matplotlib for plotting
import matplotlib as mpl
import matplotlib.pyplot as plt
%matplotlib inline

# SciPy for statistical functions
from scipy import stats

# Scikit-Learn for machine learning utilities
from sklearn.decomposition import PCA
from sklearn import manifold

# RSA toolbox specific imports
import rsatoolbox
from rsatoolbox.data import Dataset
from rsatoolbox.rdm.calc import calc_rdm

# @title Figure settings

logging.getLogger('matplotlib.font_manager').disabled = True

%matplotlib inline
%config InlineBackend.figure_format = 'retina' # perfrom high definition rendering for images and plots
plt.style.use("https://raw.githubusercontent.com/NeuromatchAcademy/course-content/main/nma.mplstyle")

# @title Plotting functions

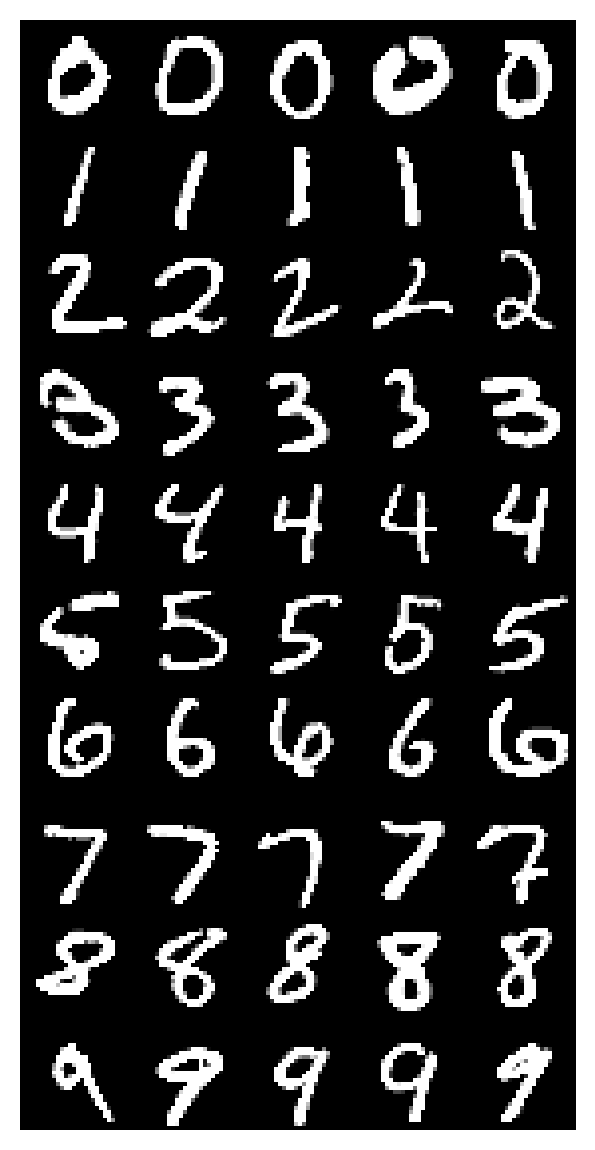

def sample_images(data_loader, n=5, plot=False):
    """
    Samples a specified number of images from a data loader.

    Inputs:
    - data_loader (torch.utils.data.DataLoader): Data loader containing images and labels.
    - n (int): Number of images to sample per class.
    - plot (bool): Whether to plot the sampled images using matplotlib.

    Outputs:
    - imgs (torch.Tensor): Sampled images.
    - labels (torch.Tensor): Corresponding labels for the sampled images.
    """

    with plt.xkcd():
        imgs, targets = next(iter(data_loader))

        imgs_o = []
        labels = []
        for value in range(10):
            cat_imgs = imgs[np.where(targets == value)][0:n]
            imgs_o.append(cat_imgs)
            labels.append([value]*len(cat_imgs))

        imgs = torch.cat(imgs_o, dim=0)
        labels = torch.tensor(labels).flatten()

        if plot:
            plt.imshow(torch.moveaxis(make_grid(imgs, nrow=5, padding=0, normalize=False, pad_value=0), 0,-1))
            plt.axis('off')

        return imgs, labels

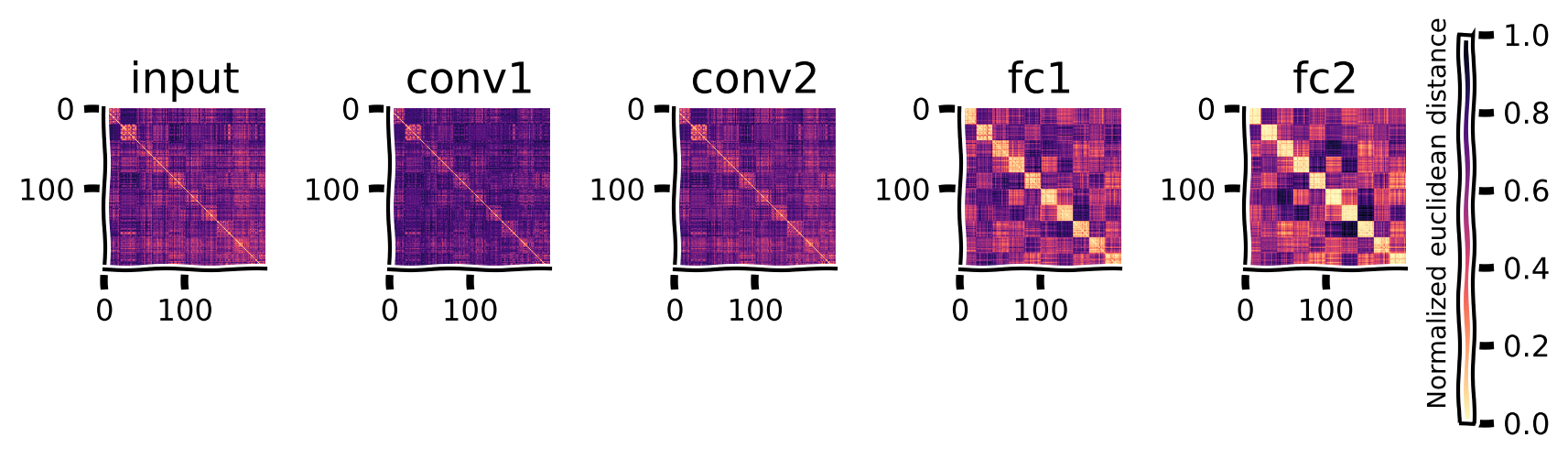

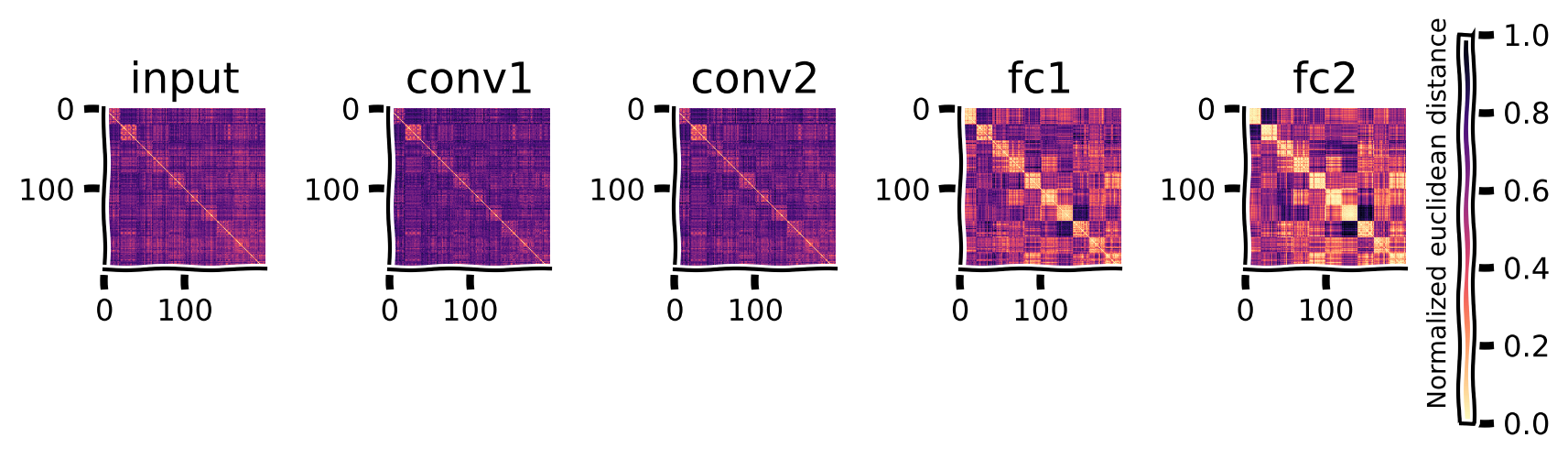

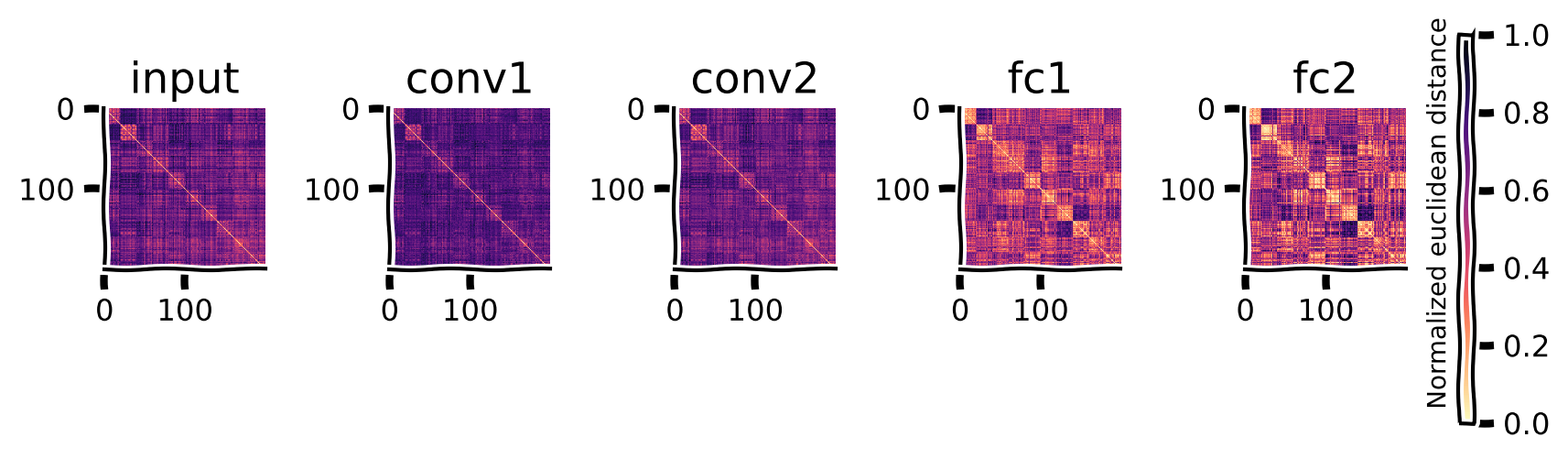

def plot_rdms(model_rdms):
    """
    Plots the Representational Dissimilarity Matrices (RDMs) for each layer of a model.

    Inputs:
    - model_rdms (dict): A dictionary where keys are layer names and values are the corresponding RDMs.
    """

    with plt.xkcd():
        fig = plt.figure(figsize=(8, 4))
        gs = fig.add_gridspec(1, len(model_rdms))
        fig.subplots_adjust(wspace=0.2, hspace=0.2)

        for l in range(len(model_rdms)):

            layer = list(model_rdms.keys())[l]
            rdm = np.squeeze(model_rdms[layer])

            if len(rdm.shape) < 2:
                rdm = rdm.reshape( (int(np.sqrt(rdm.shape[0])), int(np.sqrt(rdm.shape[0]))) )

            rdm = rdm / np.max(rdm)

            ax = plt.subplot(gs[0,l])
            ax_ = ax.imshow(rdm, cmap='magma_r')
            ax.set_title(f'{layer}')

        fig.subplots_adjust(right=0.9)
        cbar_ax = fig.add_axes([1.01, 0.18, 0.01, 0.53])
        cbar_ax.text(-2.3, 0.05, 'Normalized euclidean distance', size=10, rotation=90)
        fig.colorbar(ax_, cax=cbar_ax)

        plt.show()

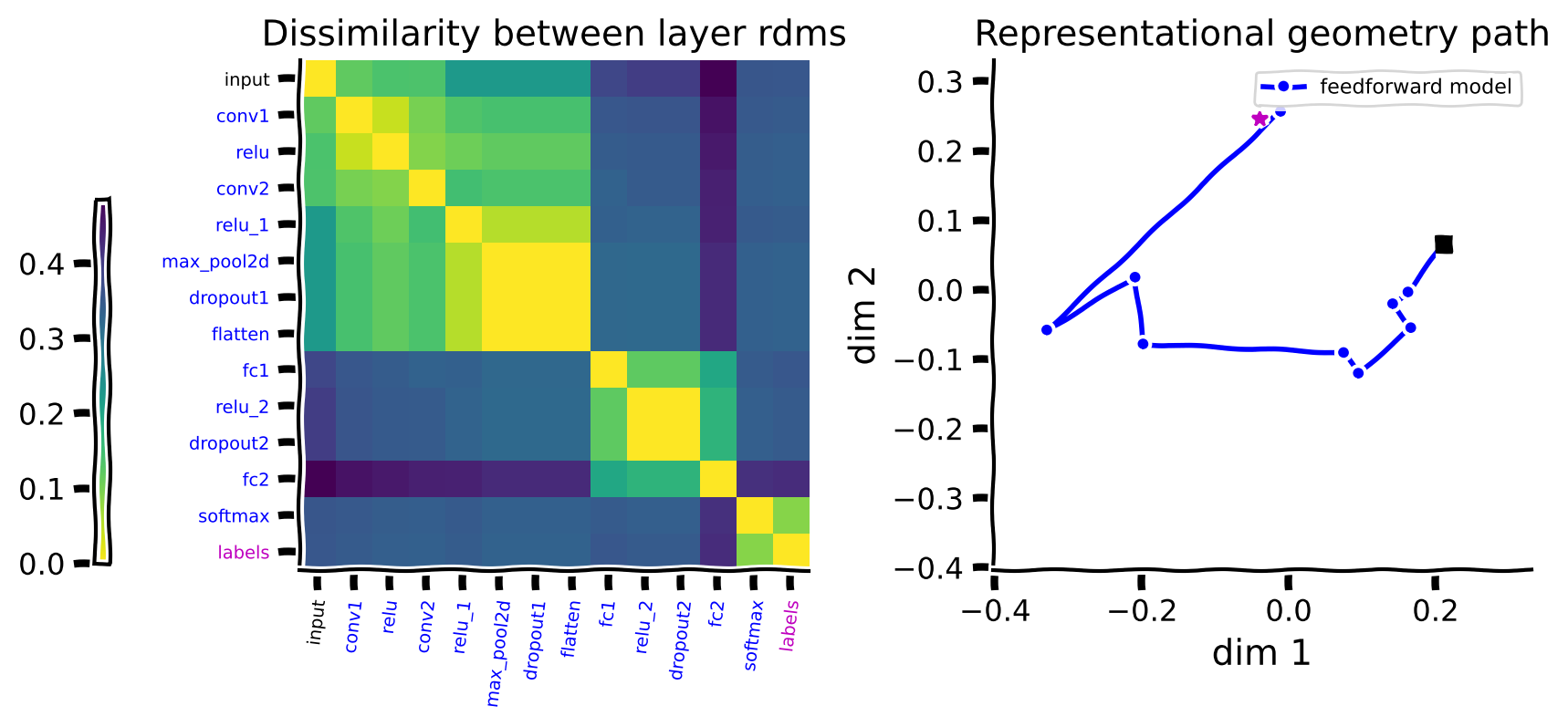

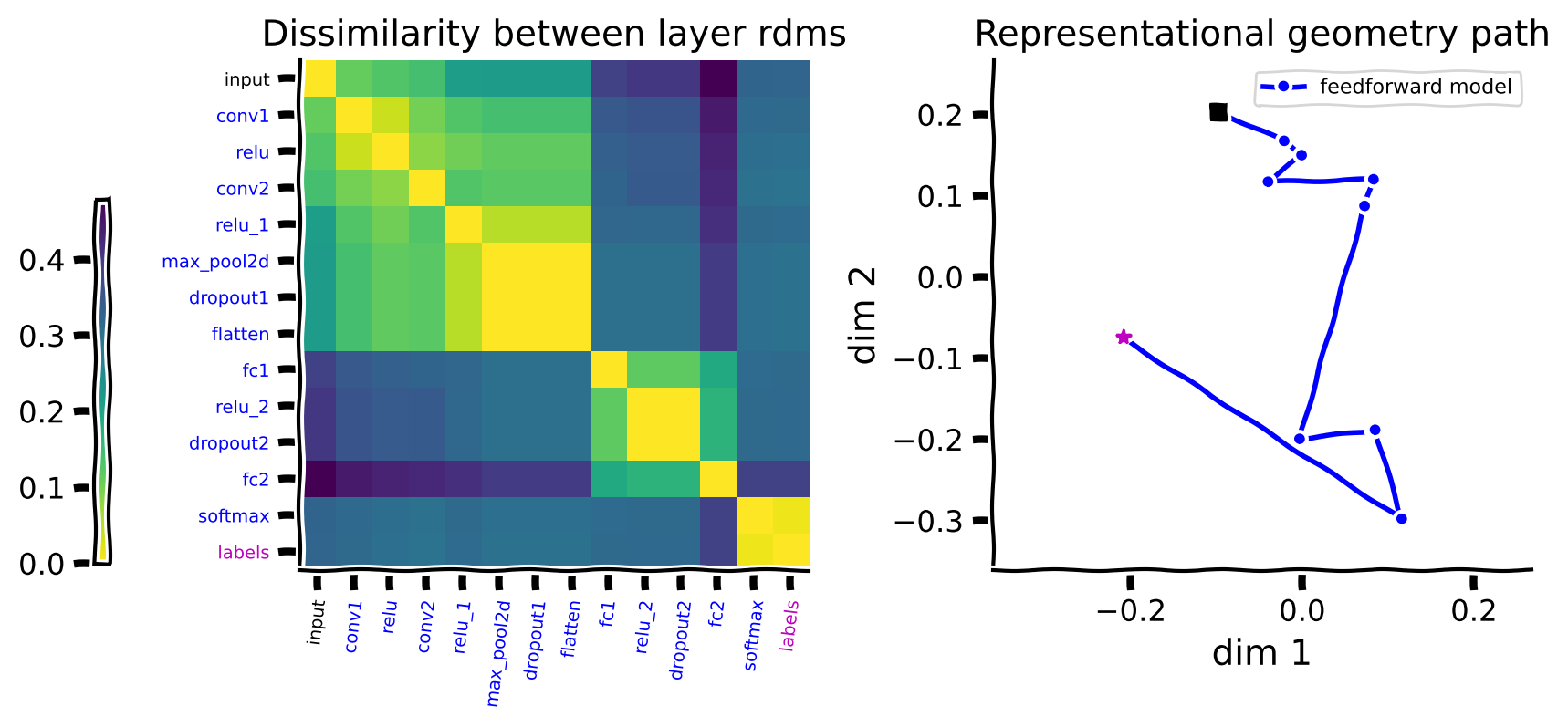

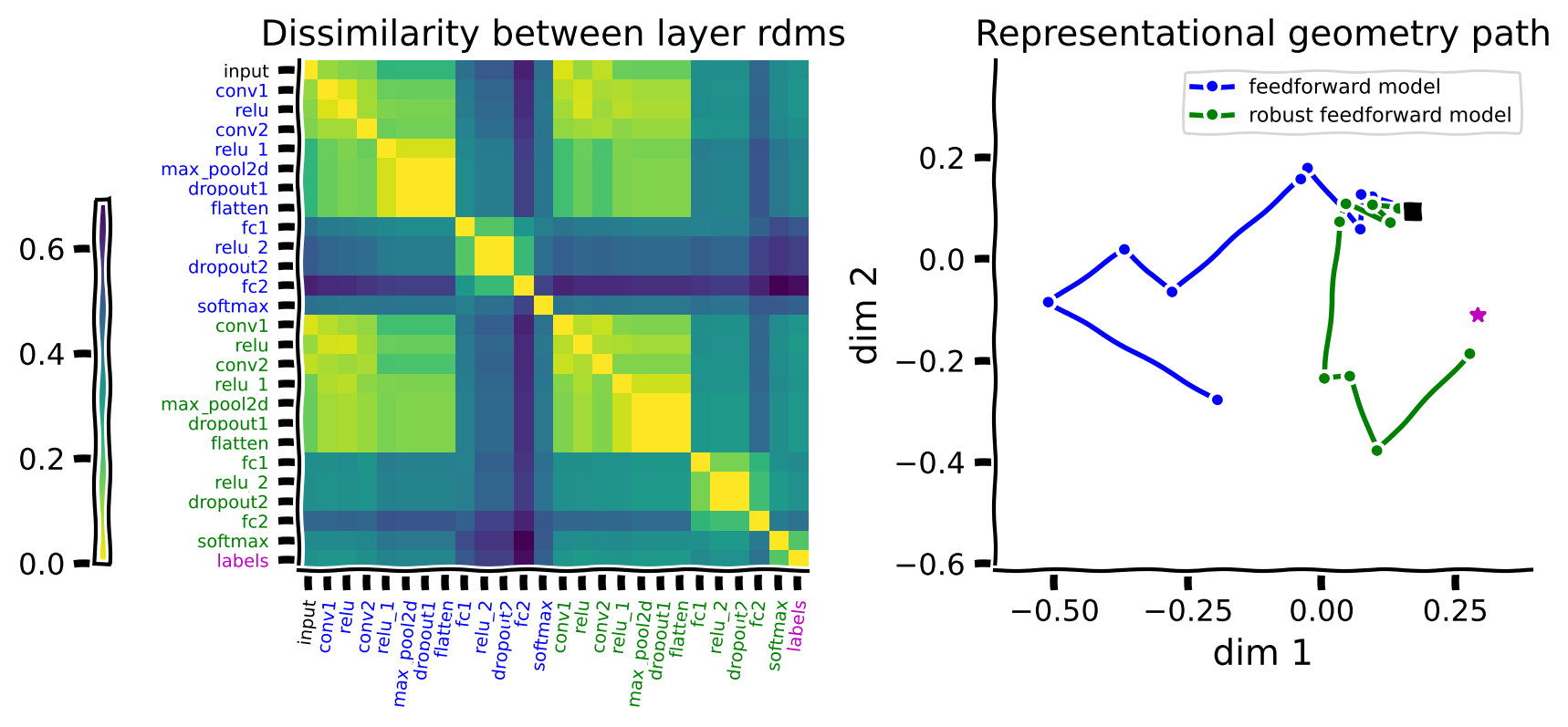

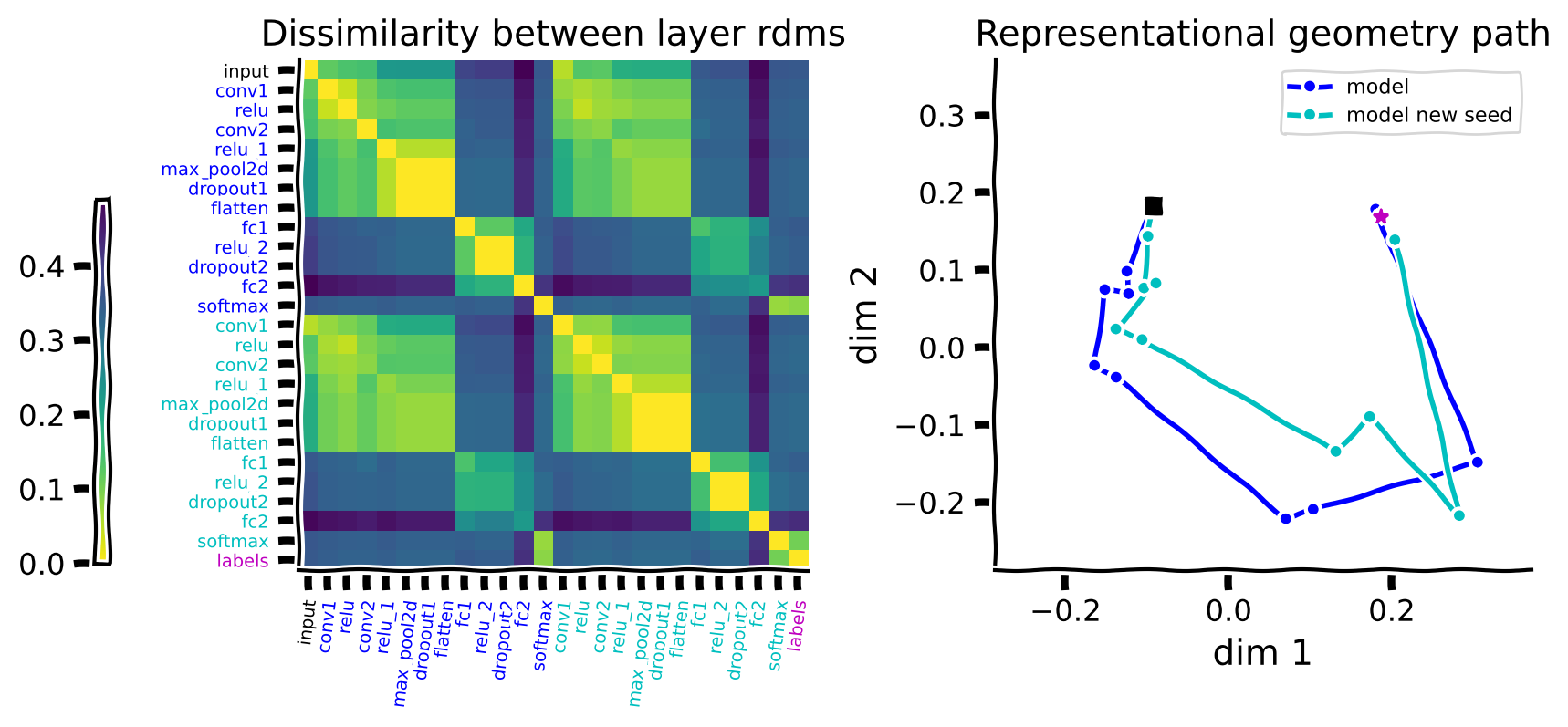

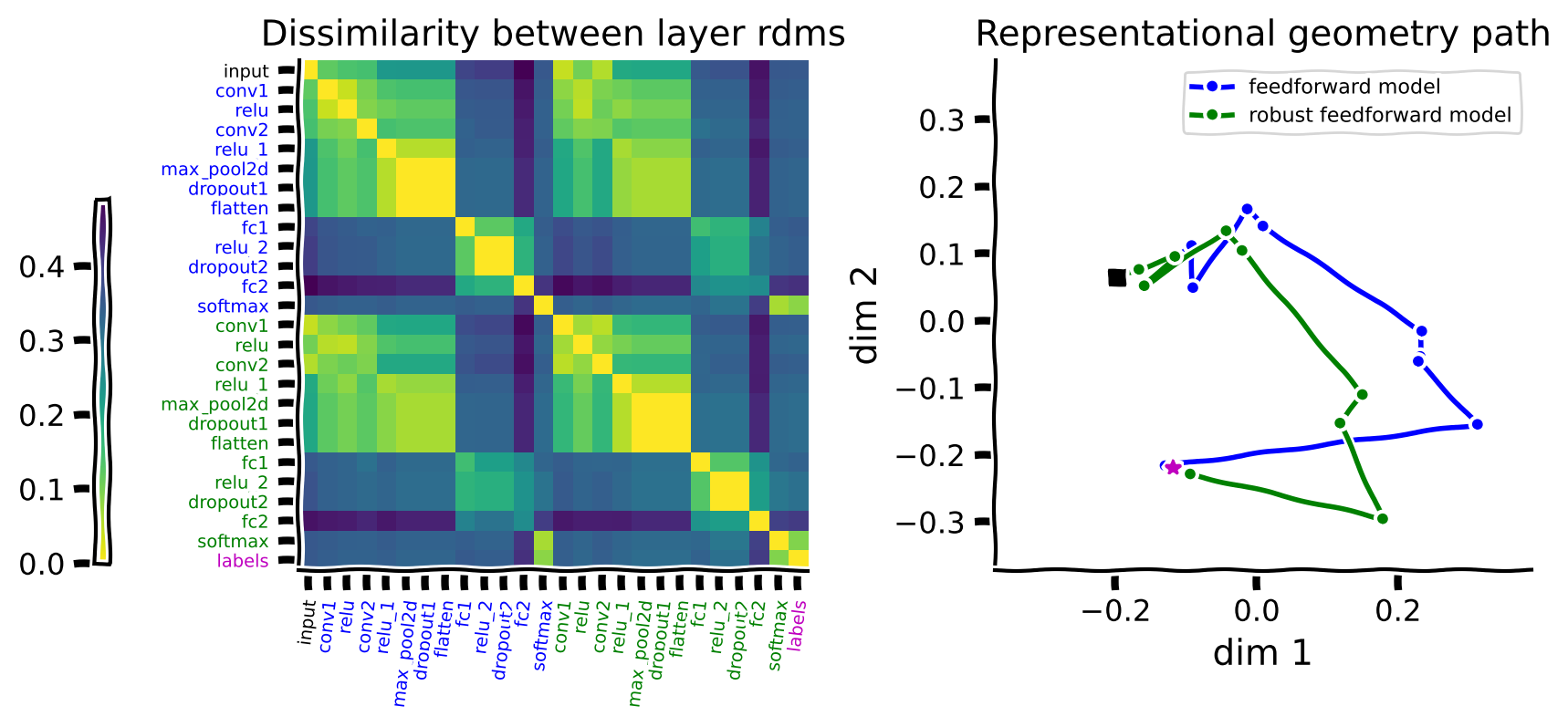

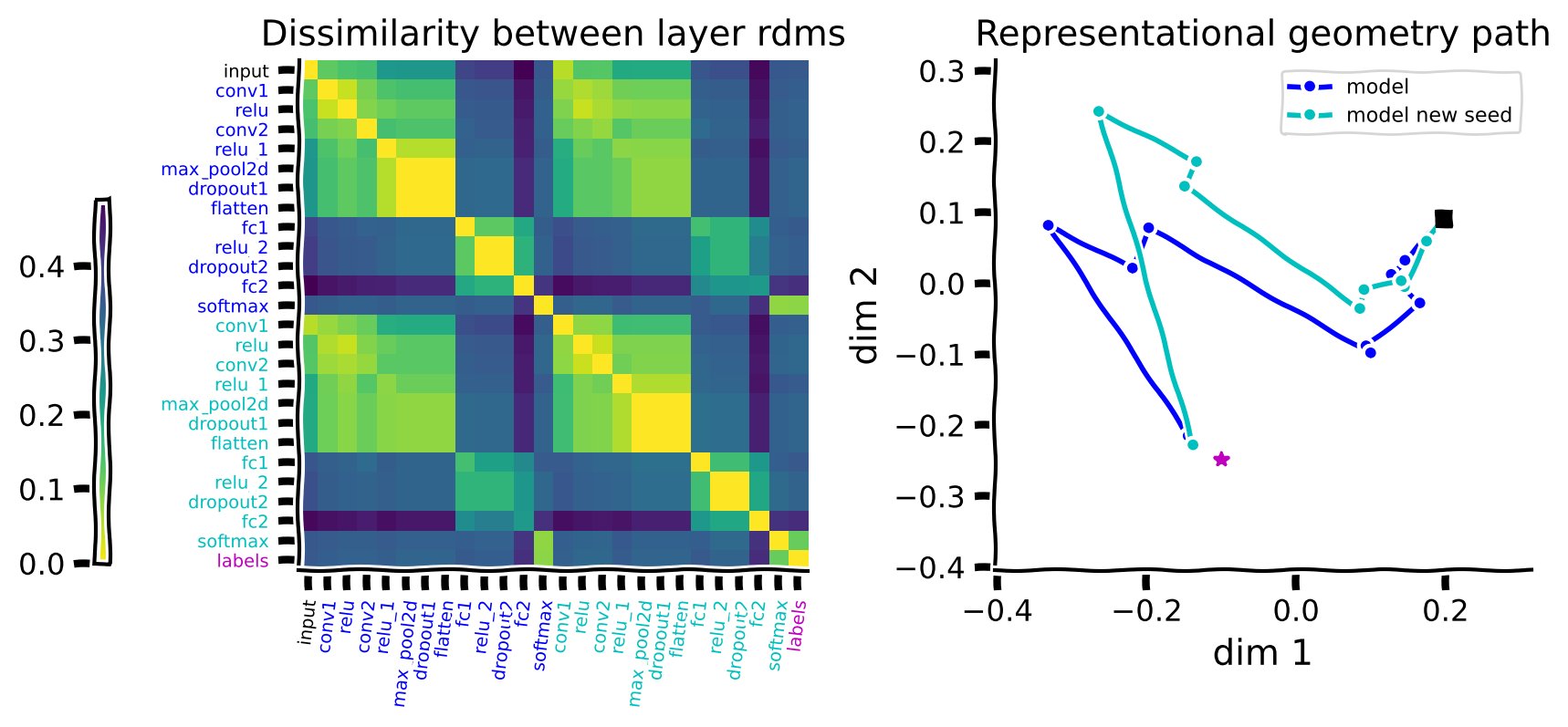

def rep_path(model_features, model_colors, labels=None, rdm_calc_method='euclidean', rdm_comp_method='cosine'):
    """
    Represents paths of model features in a reduced-dimensional space.

    Inputs:
    - model_features (dict): Dictionary containing model features for each model.
    - model_colors (dict): Dictionary mapping model names to colors for visualization.
    - labels (array-like, optional): Array of labels corresponding to the model features.
    - rdm_calc_method (str, optional): Method for calculating RDMS ('euclidean' or 'correlation').
    - rdm_comp_method (str, optional): Method for comparing RDMS ('cosine' or 'corr').
    """
    with plt.xkcd():
        path_len = []
        path_colors = []
        rdms_list = []
        ax_ticks = []
        tick_colors = []
        model_names = list(model_features.keys())
        for m in range(len(model_names)):
            model_name = model_names[m]
            features = model_features[model_name]
            path_colors.append(model_colors[model_name])
            path_len.append(len(features))
            ax_ticks.append(list(features.keys()))
            tick_colors.append([model_colors[model_name]]*len(features))
            rdms, _ = calc_rdms(features, method=rdm_calc_method)
            rdms_list.append(rdms)

        path_len = np.insert(np.cumsum(path_len),0,0)

        if labels is not None:
            rdms, _ = calc_rdms({'labels' : F.one_hot(labels).float().to(device)}, method=rdm_calc_method)
            rdms_list.append(rdms)
            ax_ticks.append(['labels'])
            tick_colors.append(['m'])
            idx_labels = -1

        rdms = rsatoolbox.rdm.concat(rdms_list)

        #Flatten the list
        ax_ticks = [l for model_layers in ax_ticks for l in model_layers]
        tick_colors = [l for model_layers in tick_colors for l in model_layers]
        tick_colors = ['k' if tick == 'input' else color for tick, color in zip(ax_ticks, tick_colors)]

        rdms_comp = rsatoolbox.rdm.compare(rdms, rdms, method=rdm_comp_method)
        if rdm_comp_method == 'cosine':
            rdms_comp = np.arccos(rdms_comp)
        rdms_comp = np.nan_to_num(rdms_comp, nan=0.0)

        # Symmetrize
        rdms_comp = (rdms_comp + rdms_comp.T) / 2.0

        # reduce dim to 2
        transformer = manifold.MDS(n_components = 2, max_iter=1000, n_init=10, normalized_stress='auto', dissimilarity="precomputed")
        dims= transformer.fit_transform(rdms_comp)

        # remove duplicates of the input layer from multiple models
        remove_duplicates = np.where(np.array(ax_ticks) == 'input')[0][1:]
        for index in remove_duplicates:
            del ax_ticks[index]
            del tick_colors[index]
            rdms_comp = np.delete(np.delete(rdms_comp, index, axis=0), index, axis=1)

        fig = plt.figure(figsize=(8, 4))
        gs = fig.add_gridspec(1, 2)
        fig.subplots_adjust(wspace=0.2, hspace=0.2)

        ax = plt.subplot(gs[0,0])
        ax_ = ax.imshow(rdms_comp, cmap='viridis_r')
        fig.subplots_adjust(left=0.2)
        cbar_ax = fig.add_axes([-0.01, 0.2, 0.01, 0.5])
        #cbar_ax.text(-7, 0.05, 'dissimilarity between rdms', size=10, rotation=90)
        fig.colorbar(ax_, cax=cbar_ax,location='left')
        ax.set_title('Dissimilarity between layer rdms', fontdict = {'fontsize': 14})
        ax.set_xticks(np.arange(len(ax_ticks)), labels=ax_ticks, fontsize=7, rotation=83)
        ax.set_yticks(np.arange(len(ax_ticks)), labels=ax_ticks, fontsize=7)
        [t.set_color(i) for (i,t) in zip(tick_colors, ax.xaxis.get_ticklabels())]
        [t.set_color(i) for (i,t) in zip(tick_colors, ax.yaxis.get_ticklabels())]

        ax = plt.subplot(gs[0,1])
        amin, amax = dims.min(), dims.max()
        amin, amax = (amin + amax) / 2 - (amax - amin) * 5/8, (amin + amax) / 2 + (amax - amin) * 5/8

        for i in range(len(rdms_list)-1):

            path_indices = np.arange(path_len[i], path_len[i+1])
            ax.plot(dims[path_indices, 0], dims[path_indices, 1], color=path_colors[i], marker='.')
            ax.set_title('Representational geometry path', fontdict = {'fontsize': 14})
            ax.set_xlim([amin, amax])
            ax.set_ylim([amin, amax])
            ax.set_xlabel(f"dim 1")
            ax.set_ylabel(f"dim 2")

        # if idx_input is not None:
        idx_input = 0
        ax.plot(dims[idx_input, 0], dims[idx_input, 1], color='k', marker='s')

        if labels is not None:
            ax.plot(dims[idx_labels, 0], dims[idx_labels, 1], color='m', marker='*')

        ax.legend(model_names, fontsize=8)
        fig.tight_layout()

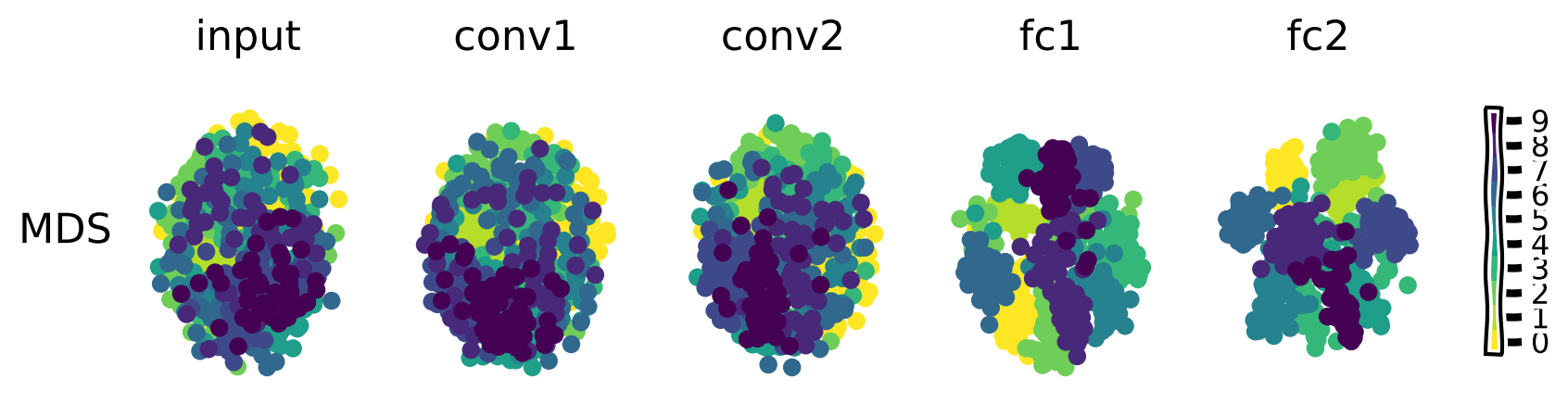

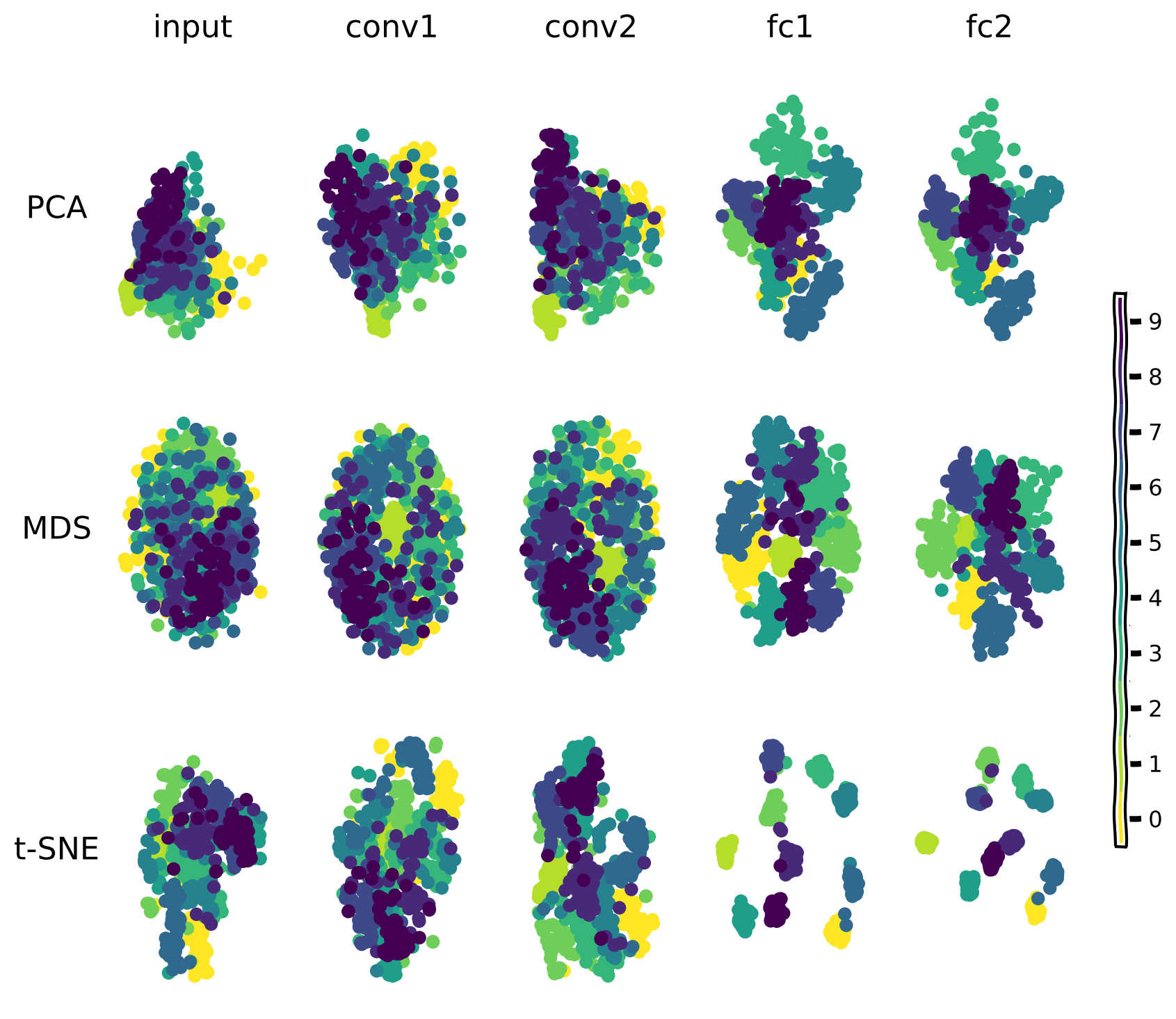

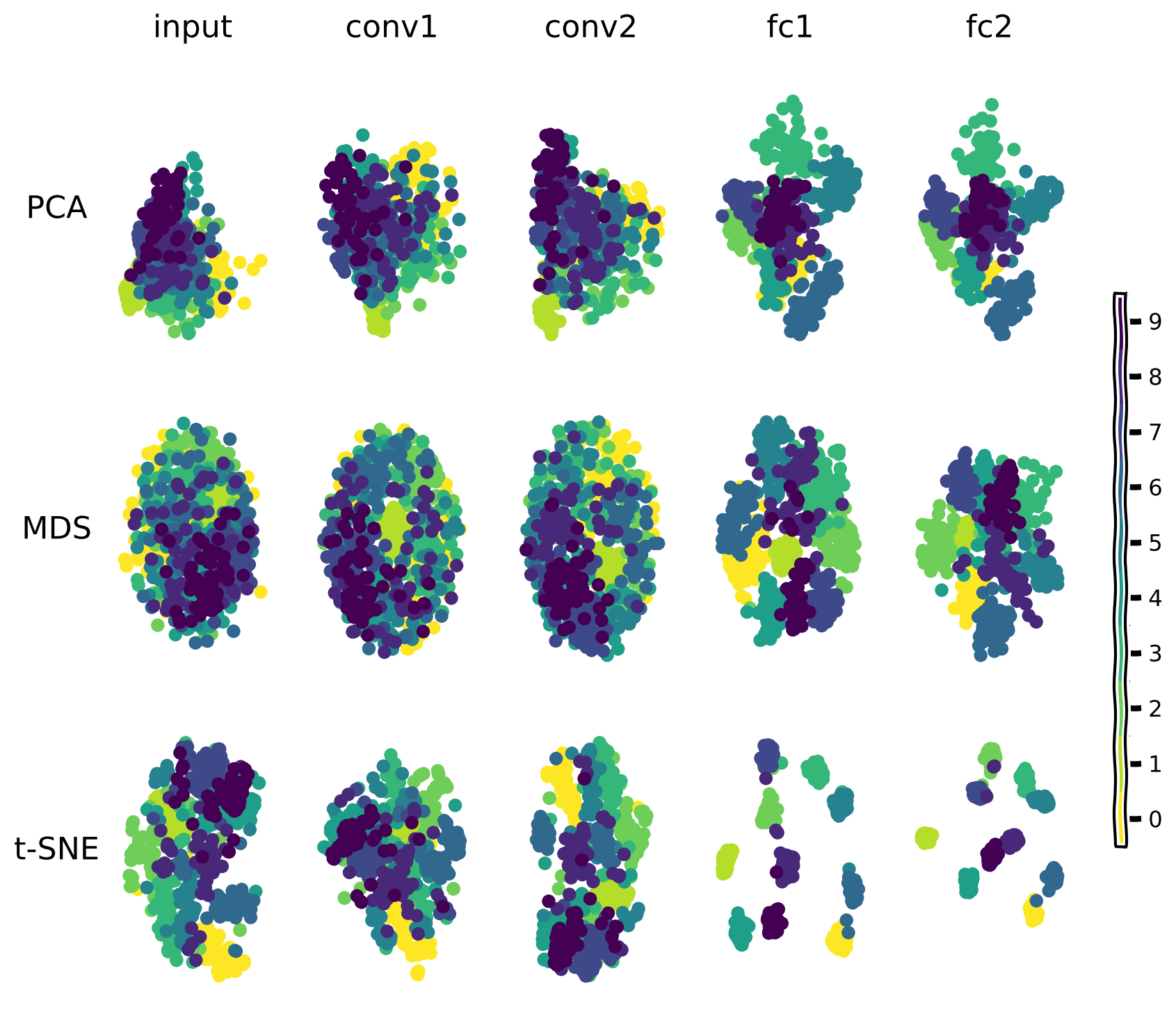

def plot_dim_reduction(model_features, labels, transformer_funcs):
    """
    Plots the dimensionality reduction results for model features using various transformers.

    Inputs:
    - model_features (dict): Dictionary containing model features for each layer.
    - labels (array-like): Array of labels corresponding to the model features.
    - transformer_funcs (list): List of dimensionality reduction techniques to apply ('PCA', 'MDS', 't-SNE').
    """
    with plt.xkcd():

        transformers = []
        for t in transformer_funcs:
            if t == 'PCA': transformers.append(PCA(n_components=2))
            if t == 'MDS': transformers.append(manifold.MDS(n_components = 2, normalized_stress='auto'))
            if t == 't-SNE': transformers.append(manifold.TSNE(n_components = 2, perplexity=40, verbose=0))

        fig = plt.figure(figsize=(8, 2.5*len(transformers)))
        # and we add one plot per reference point
        gs = fig.add_gridspec(len(transformers), len(model_features))
        fig.subplots_adjust(wspace=0.2, hspace=0.2)

        return_layers = list(model_features.keys())

        for f in range(len(transformer_funcs)):

            for l in range(len(return_layers)):
                layer =  return_layers[l]
                feats = model_features[layer].detach().cpu().flatten(1)
                feats_transformed= transformers[f].fit_transform(feats)

                amin, amax = feats_transformed.min(), feats_transformed.max()
                amin, amax = (amin + amax) / 2 - (amax - amin) * 5/8, (amin + amax) / 2 + (amax - amin) * 5/8
                ax = plt.subplot(gs[f,l])
                ax.set_xlim([amin, amax])
                ax.set_ylim([amin, amax])
                ax.axis("off")
                #ax.set_title(f'{layer}')
                if f == 0: ax.text(0.5, 1.12, f'{layer}', size=16, ha="center", transform=ax.transAxes)
                if l == 0: ax.text(-0.3, 0.5, transformer_funcs[f], size=16, ha="center", transform=ax.transAxes)
                # Create a discrete color map based on unique labels
                num_colors = len(np.unique(labels))
                cmap = plt.get_cmap('viridis_r', num_colors) # 10 discrete colors
                norm = mpl.colors.BoundaryNorm(np.arange(-0.5,num_colors), cmap.N)
                ax_ = ax.scatter(feats_transformed[:, 0], feats_transformed[:, 1], c=labels, cmap=cmap, norm=norm)

        fig.subplots_adjust(right=0.9)
        cbar_ax = fig.add_axes([1.01, 0.18, 0.01, 0.53])
        fig.colorbar(ax_, cax=cbar_ax, ticks=np.linspace(0,9,10))
        plt.show()

# @title Helper functions

import contextlib
import io

class Net(nn.Module):
    """
    A neural network model for image classification, consisting of two convolutional layers,
    followed by two fully connected layers with dropout regularization.

    Methods:
    - forward(input): Defines the forward pass of the network.
    """

    def __init__(self):
        """
        Initializes the network layers.

        Layers:
        - conv1: First convolutional layer with 1 input channel, 32 output channels, and a 3x3 kernel.
        - conv2: Second convolutional layer with 32 input channels, 64 output channels, and a 3x3 kernel.
        - dropout1: Dropout layer with a dropout probability of 0.25.
        - dropout2: Dropout layer with a dropout probability of 0.5.
        - fc1: First fully connected layer with 9216 input features and 128 output features.
        - fc2: Second fully connected layer with 128 input features and 10 output features.
        """
        super(Net, self).__init__()
        self.conv1 = nn.Conv2d(1, 32, 3, 1)
        self.conv2 = nn.Conv2d(32, 64, 3, 1)
        self.dropout1 = nn.Dropout(0.25)
        self.dropout2 = nn.Dropout(0.5)
        self.fc1 = nn.Linear(9216, 128)
        self.fc2 = nn.Linear(128, 10)

    def forward(self, input):
        """
        Defines the forward pass of the network.

        Inputs:
        - input (torch.Tensor): Input tensor of shape (batch_size, 1, height, width).

        Outputs:
        - output (torch.Tensor): Output tensor of shape (batch_size, 10) representing the class probabilities for each input sample.
        """
        x = self.conv1(input)
        x = F.relu(x)
        x = self.conv2(x)
        x = F.relu(x)
        x = F.max_pool2d(x, 2)
        x = self.dropout1(x)
        x = torch.flatten(x, 1)
        x = self.fc1(x)
        x = F.relu(x)
        x = self.dropout2(x)
        x = self.fc2(x)
        output = F.softmax(x, dim=1)
        return output

class recurrent_Net(nn.Module):
    """
    A recurrent neural network model for image classification, consisting of two convolutional layers
    with recurrent connections and a readout layer.

    Methods:
    - __init__(time_steps=5): Initializes the network layers and sets the number of time steps for recurrence.
    - forward(input): Defines the forward pass of the network.
    """

    def __init__(self, time_steps=5):
        """
        Initializes the network layers and sets the number of time steps for recurrence.

        Layers:
        - conv1: First convolutional layer with 1 input channel, 16 output channels, and a 3x3 kernel with a stride of 3.
        - conv2: Second convolutional layer with 16 input channels, 16 output channels, and a 3x3 kernel with padding of 1.
        - readout: A sequential layer containing:
            - dropout: Dropout layer with a dropout probability of 0.25.
            - avgpool: Adaptive average pooling layer to reduce spatial dimensions to 1x1.
            - flatten: Flatten layer to convert the 2D pooled output to 1D.
            - linear: Fully connected layer with 16 input features and 10 output features.
        - time_steps (int): Number of time steps for the recurrent connection.
        """
        super(recurrent_Net, self).__init__()
        self.conv1 = nn.Conv2d(1, 16, 3, 3)
        self.conv2 = nn.Conv2d(16, 16, 3, 1, padding=1)
        self.readout = nn.Sequential(OrderedDict([
            ('dropout', nn.Dropout(0.25)),
            ('avgpool', nn.AdaptiveAvgPool2d(1)),
            ('flatten', nn.Flatten()),
            ('linear', nn.Linear(16, 10))
        ]))
        self.time_steps = time_steps

    def forward(self, input):
        """
        Defines the forward pass of the network.

        Inputs:
        - input (torch.Tensor): Input tensor of shape (batch_size, 1, height, width).

        Outputs:
        - output (torch.Tensor): Output tensor of shape (batch_size, 10) representing the class probabilities for each input sample.
        """
        input = self.conv1(input)
        x = input
        for t in range(0, self.time_steps):
            x = input + self.conv2(x)
            x = F.relu(x)

        x = self.readout(x)
        output = F.softmax(x, dim=1)
        return output


def train_one_epoch(args, model, device, train_loader, optimizer, epoch):
    """
    Trains the model for one epoch.

    Inputs:
    - args (Namespace): Arguments for training configuration.
    - model (torch.nn.Module): The model to be trained.
    - device (torch.device): The device to use for training (CPU/GPU).
    - train_loader (torch.utils.data.DataLoader): DataLoader for the training data.
    - optimizer (torch.optim.Optimizer): Optimizer for updating the model parameters.
    - epoch (int): The current epoch number.
    """
    model.train()
    for batch_idx, (data, target) in enumerate(train_loader):
        data, target = data.to(device), target.to(device)
        optimizer.zero_grad()
        output = model(data)
        output = torch.log(output)  # to make it a log_softmax
        loss = F.nll_loss(output, target)
        loss.backward()
        optimizer.step()
        if batch_idx % args.log_interval == 0:
            print('Train Epoch: {} [{}/{} ({:.0f}%)]\tLoss: {:.6f}'.format(
                epoch, batch_idx * len(data), len(train_loader.dataset),
                100. * batch_idx / len(train_loader), loss.item()))
            if args.dry_run:
                break

def test(model, device, test_loader, return_features=False):
    """
    Evaluates the model on the test dataset.

    Inputs:
    - model (torch.nn.Module): The model to be evaluated.
    - device (torch.device): The device to use for evaluation (CPU/GPU).
    - test_loader (torch.utils.data.DataLoader): DataLoader for the test data.
    - return_features (bool): If True, returns the features from the model. Default is False.
    """
    model.eval()
    test_loss = 0
    correct = 0
    with torch.no_grad():
        for data, target in test_loader:
            data, target = data.to(device), target.to(device)
            output = model(data)
            output = torch.log(output)
            test_loss += F.nll_loss(output, target, reduction='sum').item()  # sum up batch loss
            pred = output.argmax(dim=1, keepdim=True)  # get the index of the max log-probability
            correct += pred.eq(target.view_as(pred)).sum().item()

    test_loss /= len(test_loader.dataset)

    print('\nTest set: Average loss: {:.4f}, Accuracy: {}/{} ({:.0f}%)\n'.format(
        test_loss, correct, len(test_loader.dataset),
        100. * correct / len(test_loader.dataset)))

def build_args():
    """
    Builds and parses command-line arguments for training.
    """
    parser = argparse.ArgumentParser(description='PyTorch MNIST Example')
    parser.add_argument('--batch-size', type=int, default=64, metavar='N',
                        help='input batch size for training (default: 64)')
    parser.add_argument('--test-batch-size', type=int, default=1000, metavar='N',
                        help='input batch size for testing (default: 1000)')
    parser.add_argument('--epochs', type=int, default=2, metavar='N',
                        help='number of epochs to train (default: 14)')
    parser.add_argument('--lr', type=float, default=1.0, metavar='LR',
                        help='learning rate (default: 1.0)')
    parser.add_argument('--gamma', type=float, default=0.7, metavar='M',
                        help='Learning rate step gamma (default: 0.7)')
    parser.add_argument('--no-cuda', action='store_true', default=False,
                        help='disables CUDA training')
    parser.add_argument('--no-mps', action='store_true', default=False,
                        help='disables macOS GPU training')
    parser.add_argument('--dry-run', action='store_true', default=False,
                        help='quickly check a single pass')
    parser.add_argument('--seed', type=int, default=1, metavar='S',
                        help='random seed (default: 1)')
    parser.add_argument('--log-interval', type=int, default=50, metavar='N',
                        help='how many batches to wait before logging training status')
    parser.add_argument('--save-model', action='store_true', default=False,
                        help='For Saving the current Model')
    args = parser.parse_args('')

    use_cuda = torch.cuda.is_available() #not args.no_cuda and

    if use_cuda:
        device = torch.device("cuda")
    else:
        device = torch.device("cpu")

    args.use_cuda = use_cuda
    args.device = device
    return args

def fetch_dataloaders(args):
    """
    Fetches the data loaders for training and testing datasets.

    Inputs:
    - args (Namespace): Parsed arguments with training configuration.

    Outputs:
    - train_loader (torch.utils.data.DataLoader): DataLoader for the training data.
    - test_loader (torch.utils.data.DataLoader): DataLoader for the test data.
    """
    train_kwargs = {'batch_size': args.batch_size}
    test_kwargs = {'batch_size': args.test_batch_size}
    if args.use_cuda:
        cuda_kwargs = {'num_workers': 1,
                       'pin_memory': True,
                       'shuffle': True}
        train_kwargs.update(cuda_kwargs)
        test_kwargs.update(cuda_kwargs)

    transform=transforms.Compose([
        transforms.ToTensor(),
        transforms.Normalize((0.1307,), (0.3081,))
        ])
    with contextlib.redirect_stdout(io.StringIO()): #to suppress output
        dataset1 = datasets.MNIST('../data', train=True, download=True,
                       transform=transform)
        dataset2 = datasets.MNIST('../data', train=False,
                       transform=transform)
        train_loader = torch.utils.data.DataLoader(dataset1, **train_kwargs)
        test_loader = torch.utils.data.DataLoader(dataset2, **test_kwargs)
        return train_loader, test_loader

def train_model(args, model, optimizer):
    """
    Trains the model using the specified arguments and optimizer.

    Inputs:
    - args (Namespace): Parsed arguments with training configuration.
    - model (torch.nn.Module): The model to be trained.
    - optimizer (torch.optim.Optimizer): Optimizer for updating the model parameters.

    Outputs:
    - None: The function trains the model and optionally saves it.
    """
    scheduler = StepLR(optimizer, step_size=1, gamma=args.gamma)
    for epoch in range(1, args.epochs + 1):
        train_one_epoch(args, model, args.device, train_loader, optimizer, epoch)
        test(model, args.device, test_loader)
        scheduler.step()

    if args.save_model:
        torch.save(model.state_dict(), "mnist_cnn.pt")


def calc_rdms(model_features, method='correlation'):
    """
    Calculates representational dissimilarity matrices (RDMs) for model features.

    Inputs:
    - model_features (dict): A dictionary where keys are layer names and values are features of the layers.
    - method (str): The method to calculate RDMs, e.g., 'correlation'. Default is 'correlation'.

    Outputs:
    - rdms (pyrsa.rdm.RDMs): RDMs object containing dissimilarity matrices.
    - rdms_dict (dict): A dictionary with layer names as keys and their corresponding RDMs as values.
    """
    ds_list = []
    for l in range(len(model_features)):
        layer = list(model_features.keys())[l]
        feats = model_features[layer]

        if type(feats) is list:
            feats = feats[-1]

        if args.use_cuda:
            feats = feats.cpu()

        if len(feats.shape) > 2:
            feats = feats.flatten(1)

        feats = feats.detach().numpy()
        ds = Dataset(feats, descriptors=dict(layer=layer))
        ds_list.append(ds)

    rdms = calc_rdm(ds_list, method=method)
    rdms_dict = {list(model_features.keys())[i]: rdms.get_matrices()[i] for i in range(len(model_features))}

    return rdms, rdms_dict

def fgsm_attack(image, epsilon, data_grad):
    """
    Performs FGSM attack on an image.

    Inputs:
    - image (torch.Tensor): Original image.
    - epsilon (float): Perturbation magnitude.
    - data_grad (torch.Tensor): Gradient of the data.

    Outputs:
    - perturbed_image (torch.Tensor): Perturbed image after FGSM attack.
    """
    sign_data_grad = data_grad.sign()
    perturbed_image = image + epsilon * sign_data_grad
    perturbed_image = torch.clamp(perturbed_image, 0, 1)
    return perturbed_image

def denorm(batch, mean=[0.1307], std=[0.3081]):
    """
    Converts a batch of normalized tensors to their original scale.

    Inputs:
    - batch (torch.Tensor): Batch of normalized tensors.
    - mean (torch.Tensor or list): Mean used for normalization.
    - std (torch.Tensor or list): Standard deviation used for normalization.

    Outputs:
    - torch.Tensor: Batch of tensors without normalization applied to them.
    """
    if isinstance(mean, list):
        mean = torch.tensor(mean).to(batch.device)
    if isinstance(std, list):
        std = torch.tensor(std).to(batch.device)

    return batch * std.view(1, -1, 1, 1) + mean.view(1, -1, 1, 1)

def generate_adversarial(model, imgs, targets, epsilon):
    """
    Generates adversarial examples using FGSM attack.

    Inputs:
    - model (torch.nn.Module): The model to attack.
    - imgs (torch.Tensor): Batch of images.
    - targets (torch.Tensor): Batch of target labels.
    - epsilon (float): Perturbation magnitude.

    Outputs:
    - adv_imgs (torch.Tensor): Batch of adversarial images.
    """
    adv_imgs = []

    for img, target in zip(imgs, targets):
        img = img.unsqueeze(0)
        target = target.unsqueeze(0)
        img.requires_grad = True

        output = model(img)
        output = torch.log(output)
        loss = F.nll_loss(output, target)

        model.zero_grad()
        loss.backward()

        data_grad = img.grad.data
        data_denorm = denorm(img)
        perturbed_data = fgsm_attack(data_denorm, epsilon, data_grad)
        perturbed_data_normalized = transforms.Normalize((0.1307,), (0.3081,))(perturbed_data)

        adv_imgs.append(perturbed_data_normalized.detach())

    return torch.cat(adv_imgs)

def test_adversarial(model, imgs, targets):
    """
    Tests the model on adversarial examples and prints the accuracy.

    Inputs:
    - model (torch.nn.Module): The model to be tested.
    - imgs (torch.Tensor): Batch of adversarial images.
    - targets (torch.Tensor): Batch of target labels.
    """
    correct = 0
    output = model(imgs)
    output = torch.log(output)
    pred = output.argmax(dim=1, keepdim=True)  # get the index of the max log-probability
    correct += pred.eq(targets.view_as(pred)).sum().item()

    final_acc = correct / float(len(imgs))
    print(f"adversarial test accuracy = {correct} / {len(imgs)} = {final_acc}")

def extract_features(model, imgs, return_layers, plot='none'):
    """
    Extracts features from specified layers of the model.

    Inputs:
    - model (torch.nn.Module): The model from which to extract features.
    - imgs (torch.Tensor): Batch of input images.
    - return_layers (list): List of layer names from which to extract features.
    - plot (str): Option to plot the features. Default is 'none'.

    Outputs:
    - model_features (dict): A dictionary with layer names as keys and extracted features as values.
    """
    if return_layers == 'all':
        return_layers, _ = get_graph_node_names(model)
    elif return_layers == 'layers':
        layers, _ = get_graph_node_names(model)
        return_layers = [l for l in layers if 'input' in l or 'conv' in l or 'fc' in l]

    feature_extractor = create_feature_extractor(model, return_nodes=return_layers)
    model_features = feature_extractor(imgs)

    return model_features

# @title Data retrieval

import os
import requests
import hashlib

# Variables for file and download URL
fnames = ["standard_model.pth", "adversarial_model.pth", "recurrent_model.pth"] # The names of the files to be downloaded
urls = ["https://osf.io/s5rt6/download", "https://osf.io/qv5eb/download", "https://osf.io/6hnwk/download"] # URLs from where the files will be downloaded
expected_md5s = ["2e63c2cd77bc9f1fa67673d956ec910d", "25fb34497377921b54368317f68a7aa7", "ee5cea3baa264cb78300102fa6ed66e8"] # MD5 hashes for verifying files integrity

for fname, url, expected_md5 in zip(fnames, urls, expected_md5s):
    if not os.path.isfile(fname):
        try:
            # Attempt to download the file
            r = requests.get(url) # Make a GET request to the specified URL
        except requests.ConnectionError:
            # Handle connection errors during the download
            print("!!! Failed to download data !!!")
        else:
            # No connection errors, proceed to check the response
            if r.status_code != requests.codes.ok:
                # Check if the HTTP response status code indicates a successful download
                print("!!! Failed to download data !!!")
            elif hashlib.md5(r.content).hexdigest() != expected_md5:
                # Verify the integrity of the downloaded file using MD5 checksum
                print("!!! Data download appears corrupted !!!")
            else:
                # If download is successful and data is not corrupted, save the file
                with open(fname, "wb") as fid:
                    fid.write(r.content) # Write the downloaded content to a file

# @title Set random seed

import random
import numpy as np
import torch

def set_seed(seed=None, seed_torch=True):
  if seed is None:
    seed = np.random.choice(2 ** 32)
  random.seed(seed)
  np.random.seed(seed)
  if seed_torch:
    torch.manual_seed(seed)
    torch.cuda.manual_seed_all(seed)
    torch.cuda.manual_seed(seed)
    torch.backends.cudnn.benchmark = False
    torch.backends.cudnn.deterministic = True

set_seed(seed = 42)

# @title Set device (GPU or CPU)

# inform the user if the notebook uses GPU or CPU.

def set_device():
    """
    Determines and sets the computational device for PyTorch operations based on the availability of a CUDA-capable GPU.

    Outputs:
    - device (str): The device that PyTorch will use for computations ('cuda' or 'cpu'). This string can be directly used
    in PyTorch operations to specify the device.
    """

    device = "cuda" if torch.cuda.is_available() else "cpu"
    if device != "cuda":
        print("GPU is not enabled in this notebook. \n"
              "If you want to enable it, in the menu under `Runtime` -> \n"
              "`Hardware accelerator.` and select `GPU` from the dropdown menu")
    else:
        print("GPU is enabled in this notebook. \n"
              "If you want to disable it, in the menu under `Runtime` -> \n"
              "`Hardware accelerator.` and select `None` from the dropdown menu")

    return device

device = set_device()

# @title Grab a standard model

args = build_args()
train_loader, test_loader = fetch_dataloaders(args)
path = "standard_model.pth"
model = torch.load(path, map_location=args.device, weights_only=False)

# @title Just sample 5 per category to show the order

imgs, labels = sample_images(test_loader, n=5, plot=True)

# @title Computational steps

train_nodes, _ = get_graph_node_names(model)
print('The computational steps in the network are: \n', train_nodes)

# @title Features for different layers

return_layers = ['input', 'conv1', 'conv2', 'fc1', 'fc2']
model_features = extract_features(model, imgs.to(device), return_layers=return_layers)
print('features gathered for:', list(model_features.keys()))

# @title Putting it all together

imgs, labels = sample_images(test_loader, n=20) #grab 20 samples from each category

return_layers = ['input', 'conv1', 'conv2', 'fc1', 'fc2']
model_features = extract_features(model, imgs.to(device), return_layers=return_layers)

rdms, rdms_dict = calc_rdms(model_features)
plot_rdms(rdms_dict)

# @title Sequential image representation clustering

return_layers = ['input', 'conv1', 'conv2', 'fc1', 'fc2']
imgs, labels = sample_images(test_loader, n=50) #grab 50 samples from the each category

# Alternatively, get a whole test batch
#imgs, labels = next(iter(test_loader))

model_features = extract_features(model, imgs.to(device), return_layers)
plot_dim_reduction(model_features, labels, transformer_funcs =['PCA', 'MDS', 't-SNE'])

# @title Representational Path

imgs, labels = next(iter(test_loader))

model_features = extract_features(model, imgs.to(device), return_layers='all')

features = {'feedforward model': model_features}
model_colors = {'feedforward model': 'b'}
rep_path(features, model_colors, labels)

# @title Test your idea by executing this cell!

imgs, labels = sample_images(test_loader, n=5)
model_features = extract_features(model, imgs.to(device), return_layers='all')

features = {'feedforward model': model_features}
model_colors = {'feedforward model': 'b'}
rep_path(features, model_colors, labels)

# @title Extract model features from the adversarial images and plot the new RDMs
imgs, labels = sample_images(test_loader, n=20)
eps = 0.2
adv_imgs = generate_adversarial(model, imgs.to(device), labels.to(device), eps)
return_layers = ['input', 'conv1', 'conv2', 'fc1', 'fc2'] #inputs/outputs will be added automatically
model_features = extract_features(model, adv_imgs.to(device), return_layers)
rdms, rdms_dict = calc_rdms(model_features)
plot_rdms(rdms_dict)

# @title Grab an adversarially robust model

path = "adversarial_model.pth"
model_robust = torch.load(path, map_location=args.device, weights_only=False)

# @title Test an adversarially robust model

imgs, labels = sample_images(test_loader, n=20)
adv_imgs = generate_adversarial(model_robust, imgs.to(device), labels.to(device), eps)
test_adversarial(model_robust, adv_imgs.to(device), labels.to(device))

# @title Extract robust model features from the adversarial images and plot the new RDMs

return_layers = ['input', 'conv1', 'conv2', 'fc1', 'fc2'] #inputs/outputs will be added automatically
model_features = extract_features(model_robust, adv_imgs.to(device), return_layers)
rdms, rdms_dict = calc_rdms(model_features)
plot_rdms(rdms_dict)

# @title Plot the representational geometry changes

return_layers = ['input', 'conv1', 'conv2', 'fc1', 'fc2']
imgs, labels = sample_images(test_loader, n=50) # grab 50 samples from the test set
model_features = extract_features(model_robust, imgs.to(device), return_layers)

plot_dim_reduction(model_features, labels, transformer_funcs =['MDS'])
